How do I choose a luminaire?
Share the application, site dimensions, mounting height, location and quantities so we can review the options.
עבריתTranslation coming soonEnglishENEspañolESFrançaisFRDeutschDE日本語JAالعربيةTranslation coming soon
View all products
VEGA Series

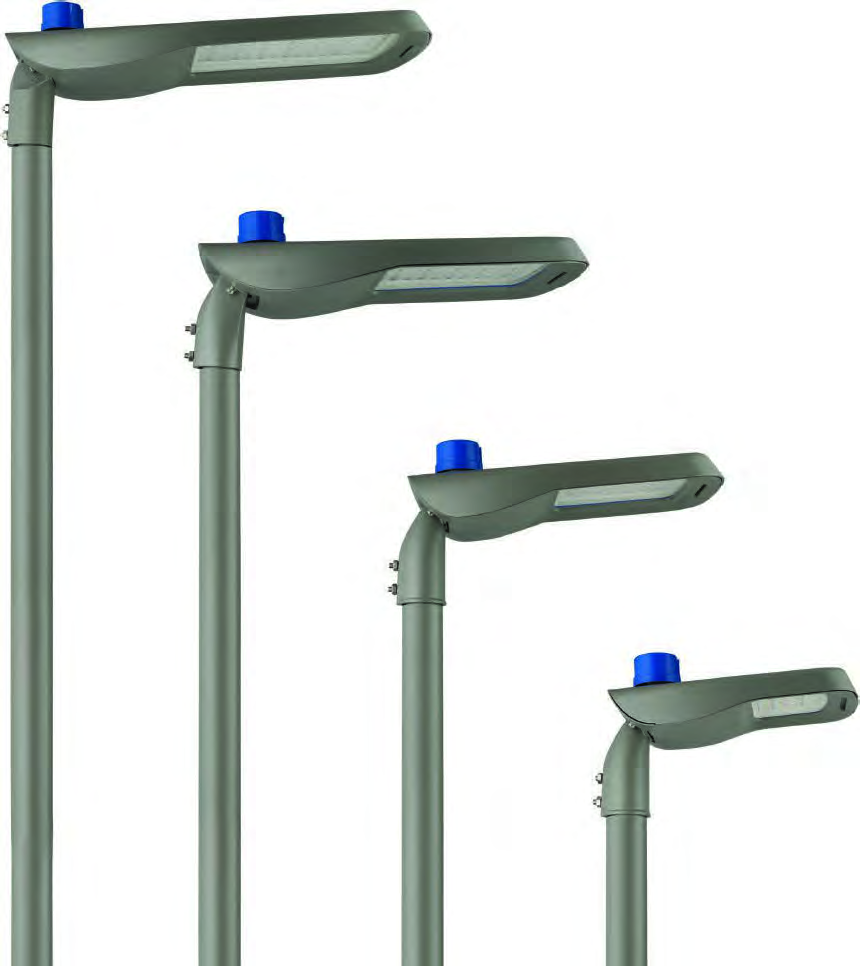

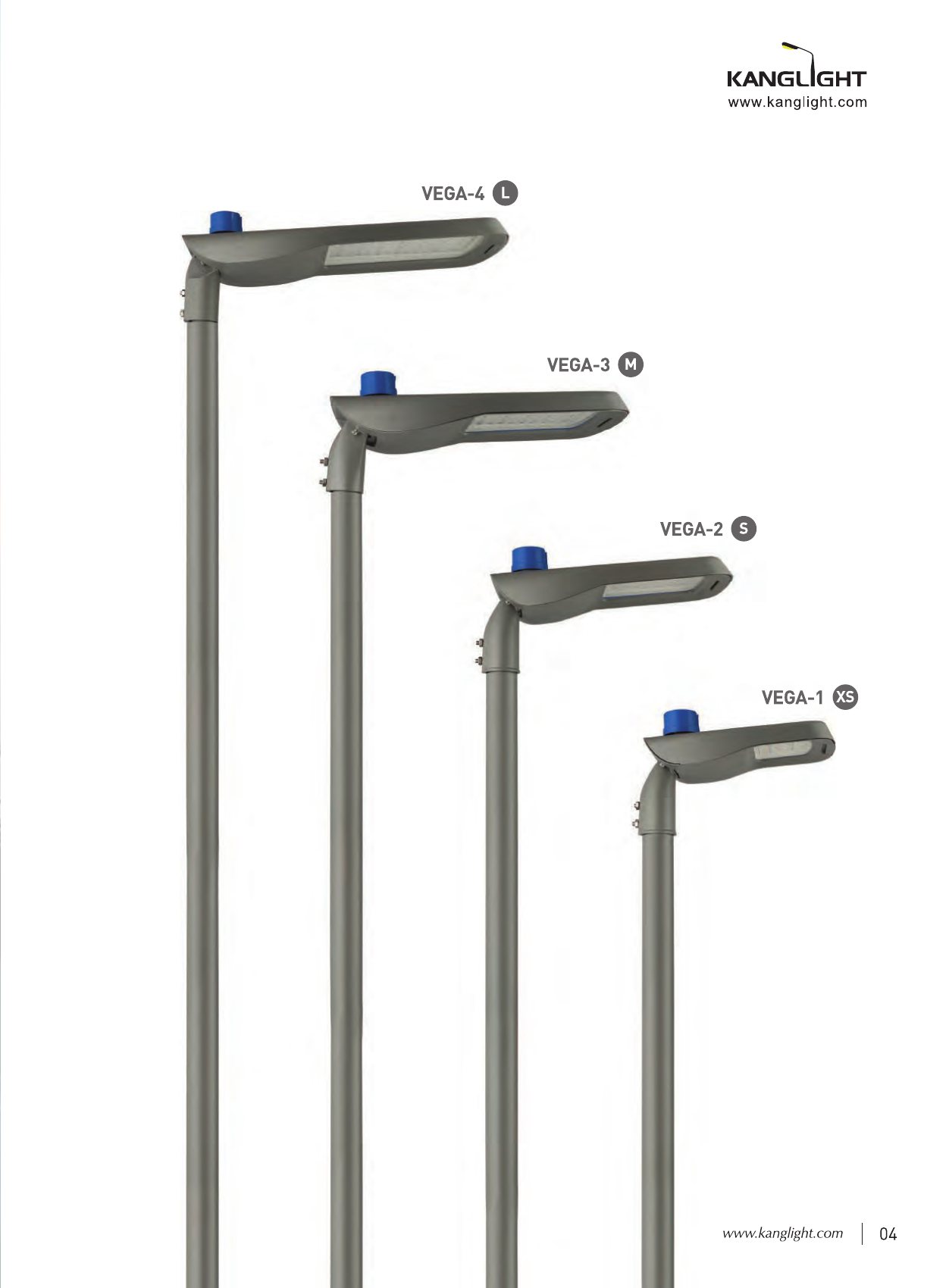

VEGA 4VEGA 3VEGA 2VEGA 1Four sizes of pole-mounted LED street luminaires. IP66 and IK09 are shown in the supplied catalogue.
Applications: Road and street lighting, with the optical distribution and mounting arrangement selected for the project.
Roadways
Urban streets
Catalogue back cover & cover · View 1 of 9

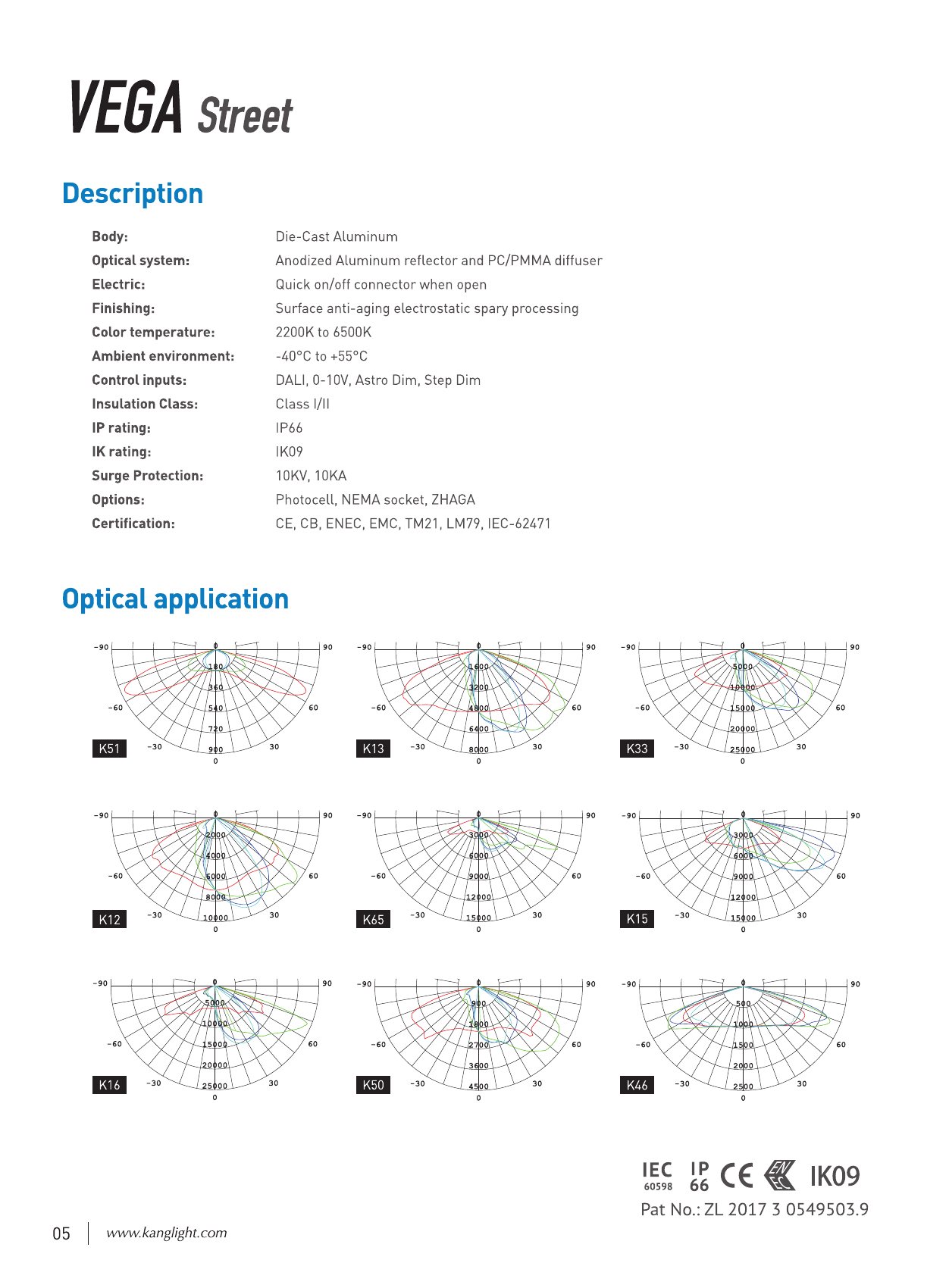

ProductDatasheet
VEGA SERIESSeries range: 8–400 W
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| VEGA 1 | 8–80 | 8 / 16 / 24 / 36 |
| VEGA 2 | 30–150 | 16 / 32 / 48 / 72 |
| VEGA 3 | 110–220 | 48 / 64 / 80 / 120 |
| VEGA 4 | 150–400 | 80 / 96 / 112 / 168 |

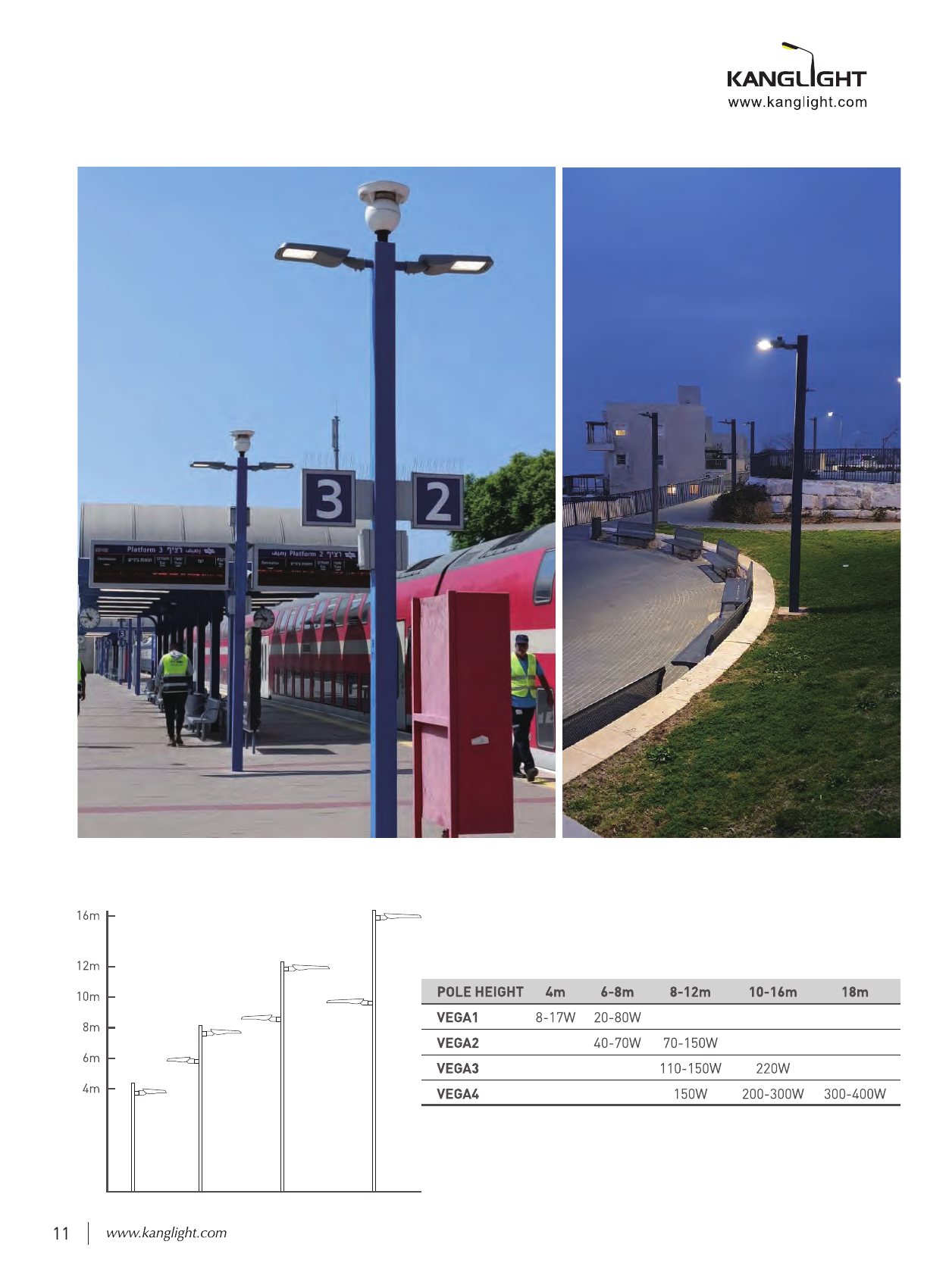

Reference: supplied 2024 VEGA Street and Flood catalogue, pages 5 and 11. The table above covers VEGA Street only; confirm current specifications for the selected configuration.
PRODUCT DOCUMENTATION
Certifications
Class I
ENEC · ENEC+ · CB · CE / LVD · EMC
5 original documents
View certificatesClass II
ENEC · ENEC+ · CB · CE / LVD · EMC
5 original documents
View certificatesDocuments are separated by the stated electrical protection class. Scope depends on the exact models, components and configurations in each original; an ENEC+ or EMC document is not a blanket claim for every series variant.
PROJECT ANSWERS
What needs to be confirmed before production?
The model, power, optics, mounting, power supply, accessories, quantities, packaging and delivery requirements.
Tell us about your projectWhich documents can I request?
Catalogues, datasheets, IES or LDT files, drawings and installation instructions. Available certificates and reports depend on the model and configuration.
What is the production lead time?
The indicative lead time is 45 days. We confirm timing according to the configuration and order quantity. Transport is arranged separately.
