SP Series

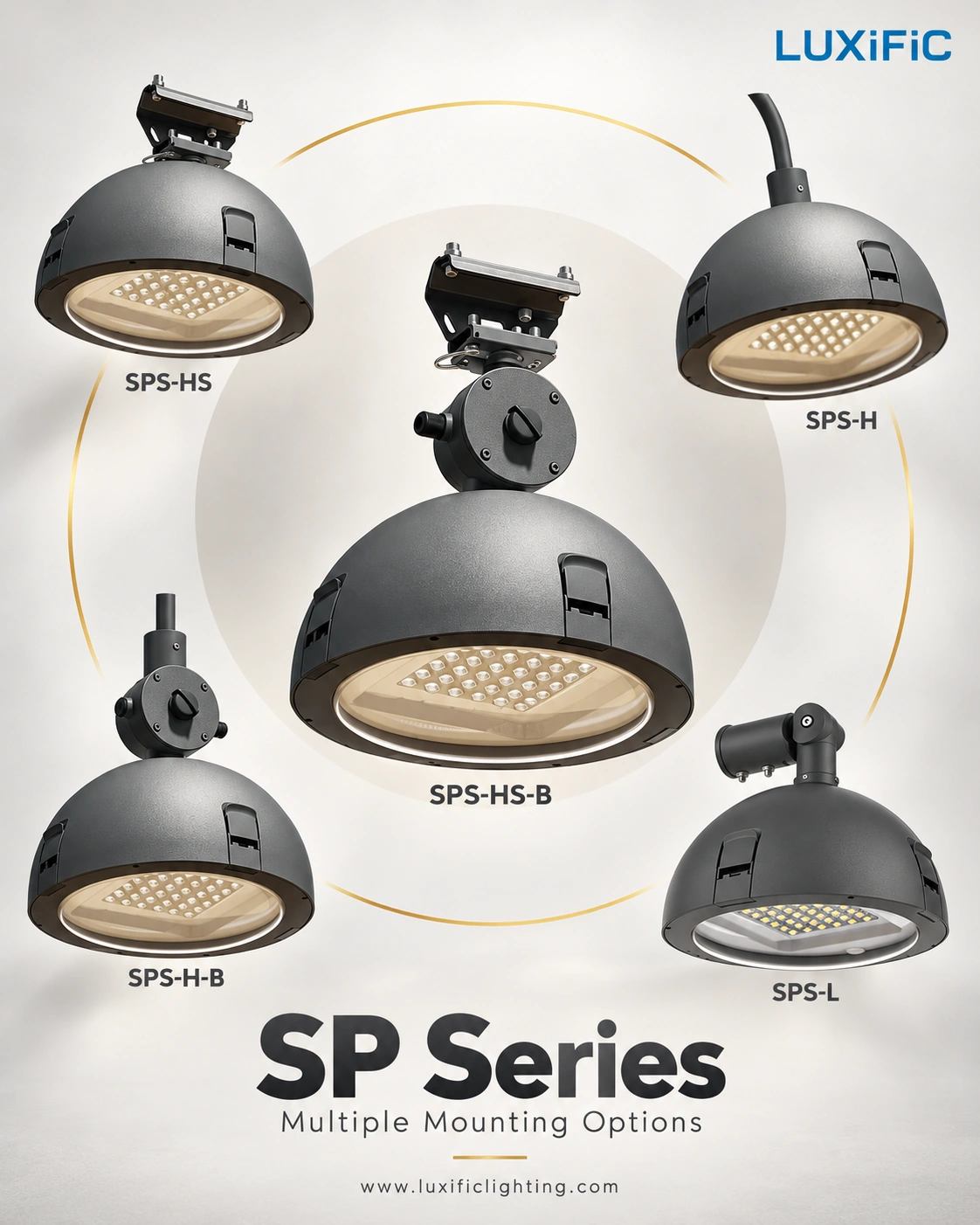

A dome-shaped family with compact SPS and larger SPM platforms, including suspension, hang and cobra mounting configurations.

Applications: Catenary streets, residential roads, pedestrian zones, urban boulevards and large public areas.

Catenary streets

Residential roads

Pedestrian zones

Urban boulevards

Large public areas

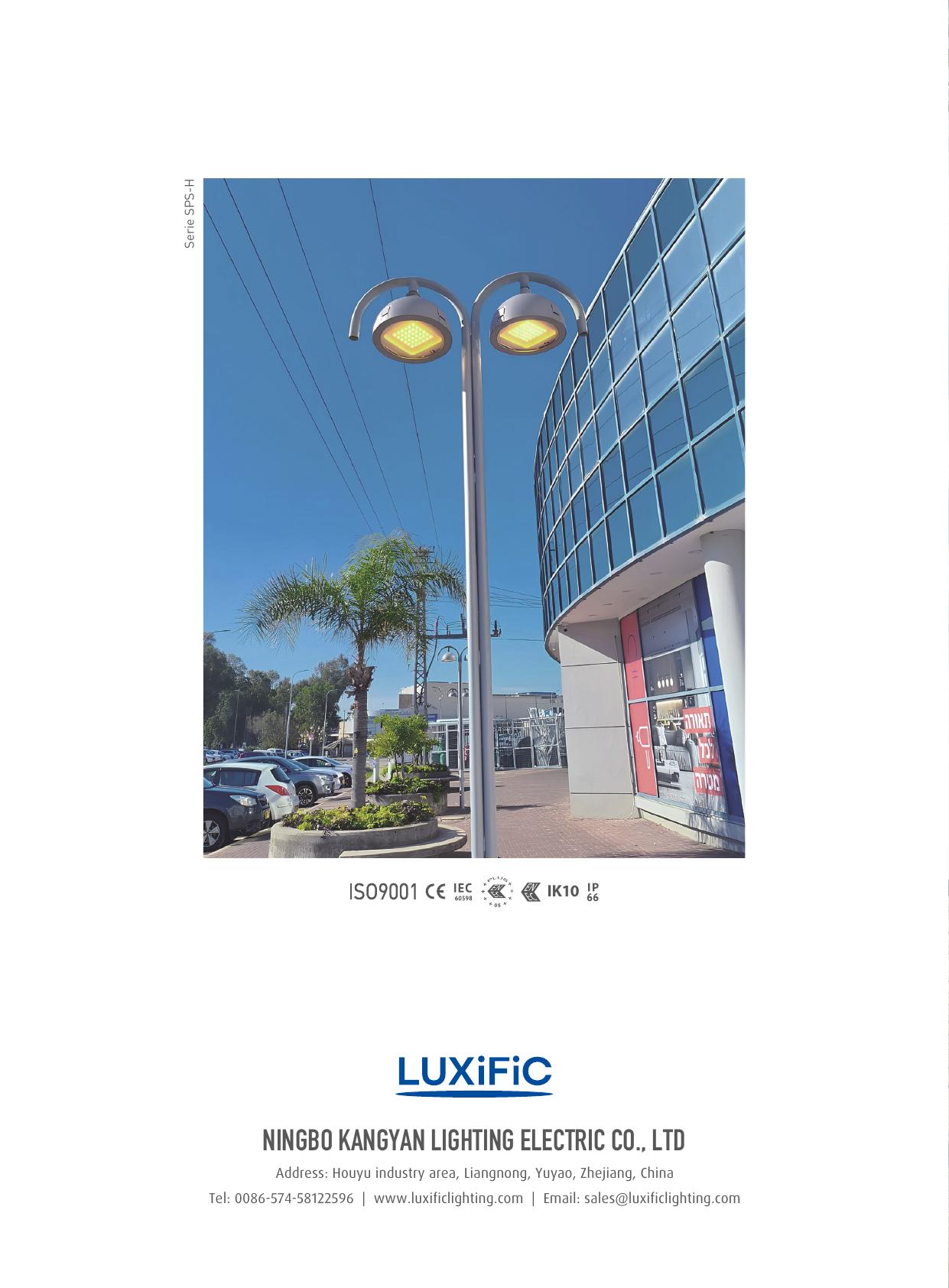

Catalogue cover & back cover · View 1 of 8

ProductDatasheet

SP SERIESSeries range: 8–150 W

Model	Power (W)	LED Quantity (pcs) 3535/5050

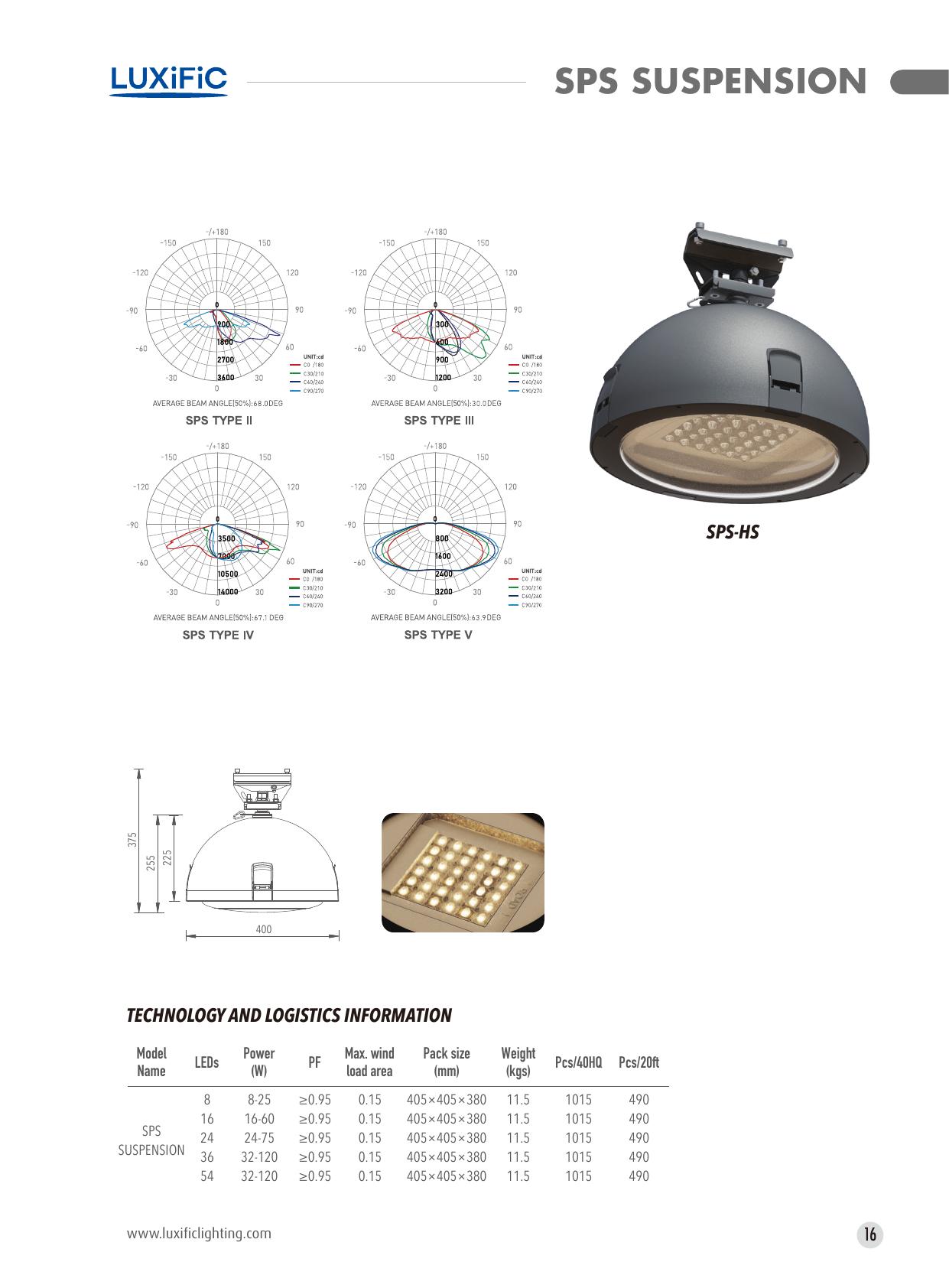

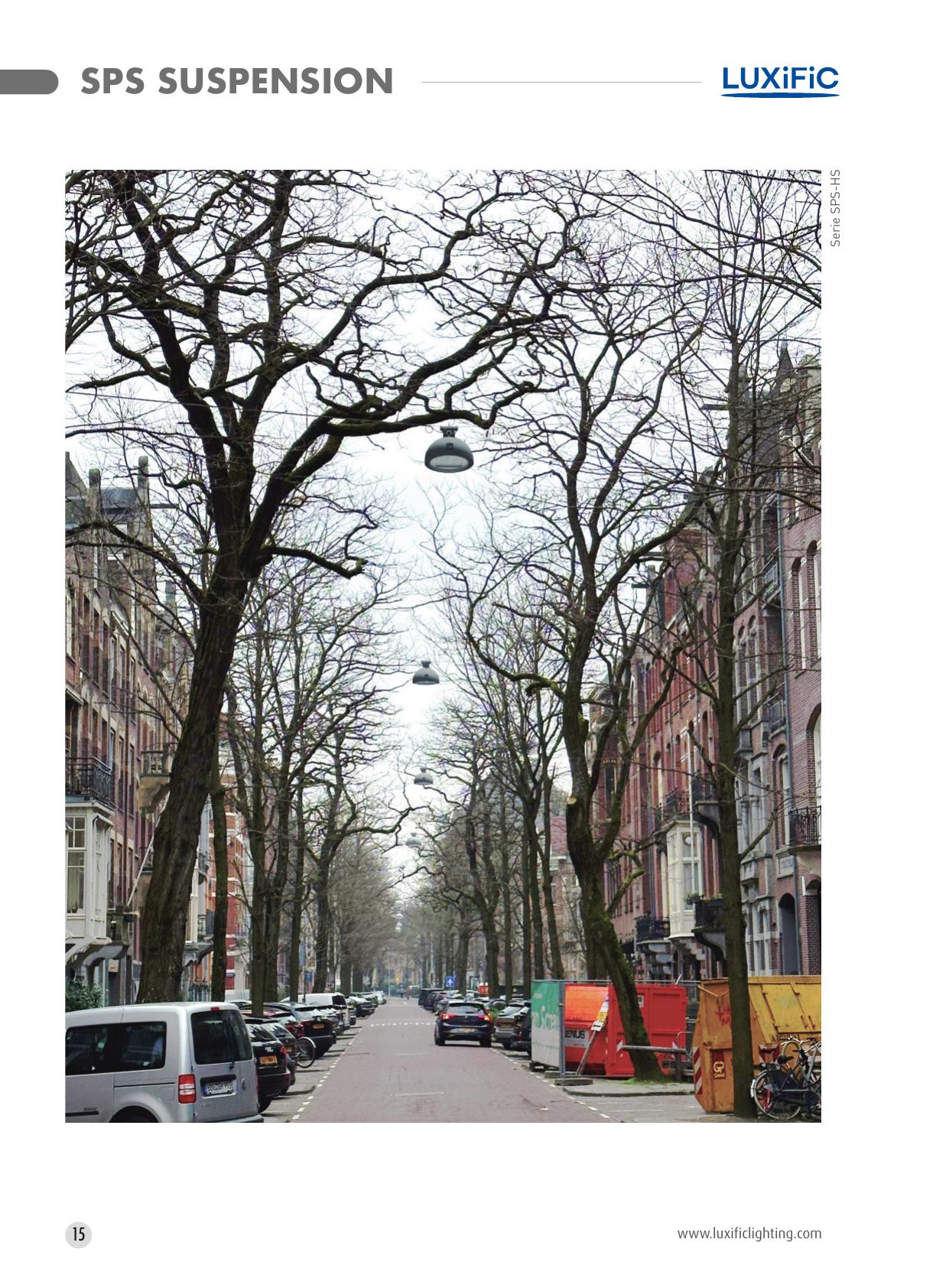

SPS-HS	8–110	8 / 16 / 24 / 36 / 54

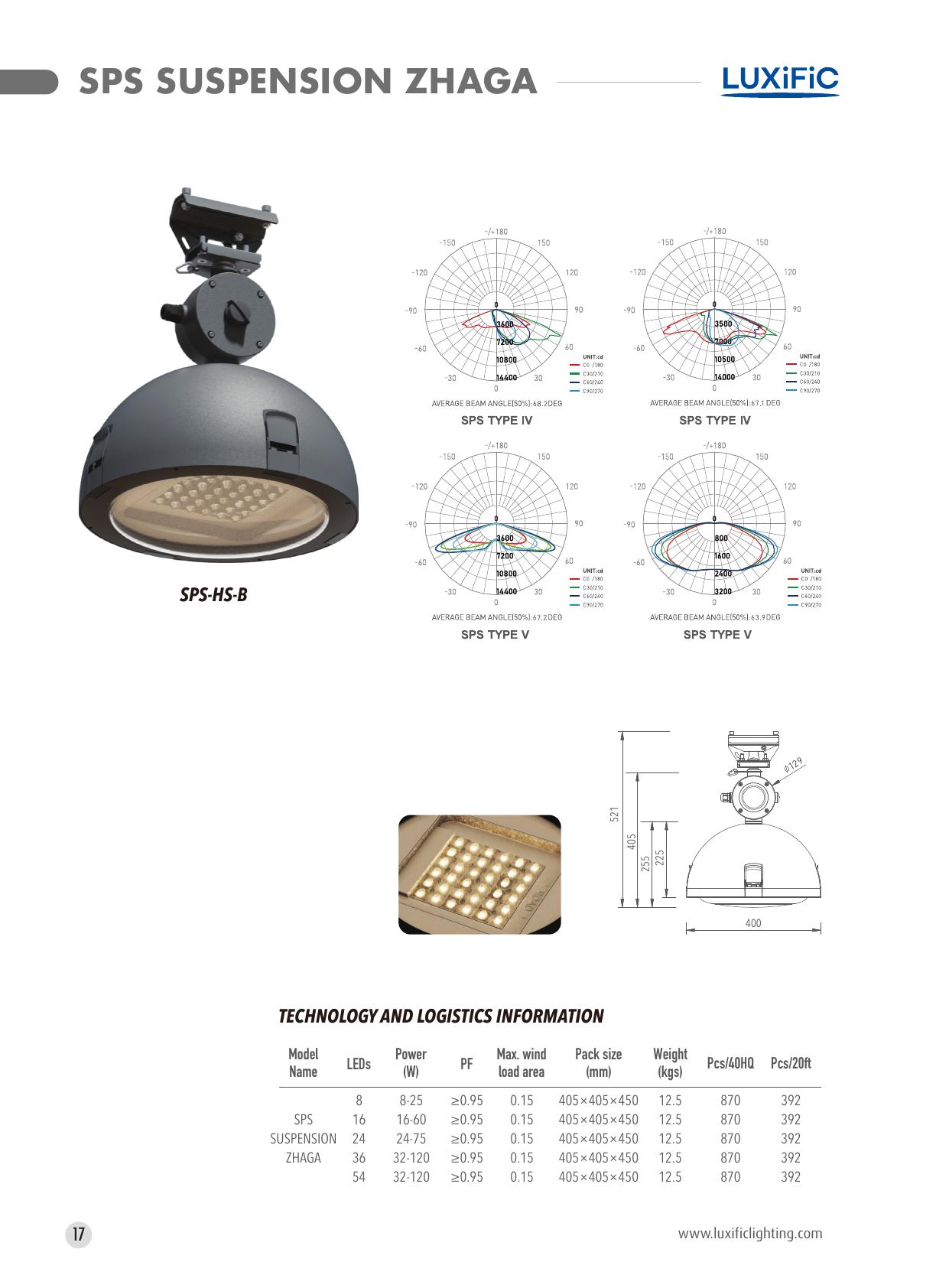

SPS-HS-B	8–110	8 / 16 / 24 / 36 / 54

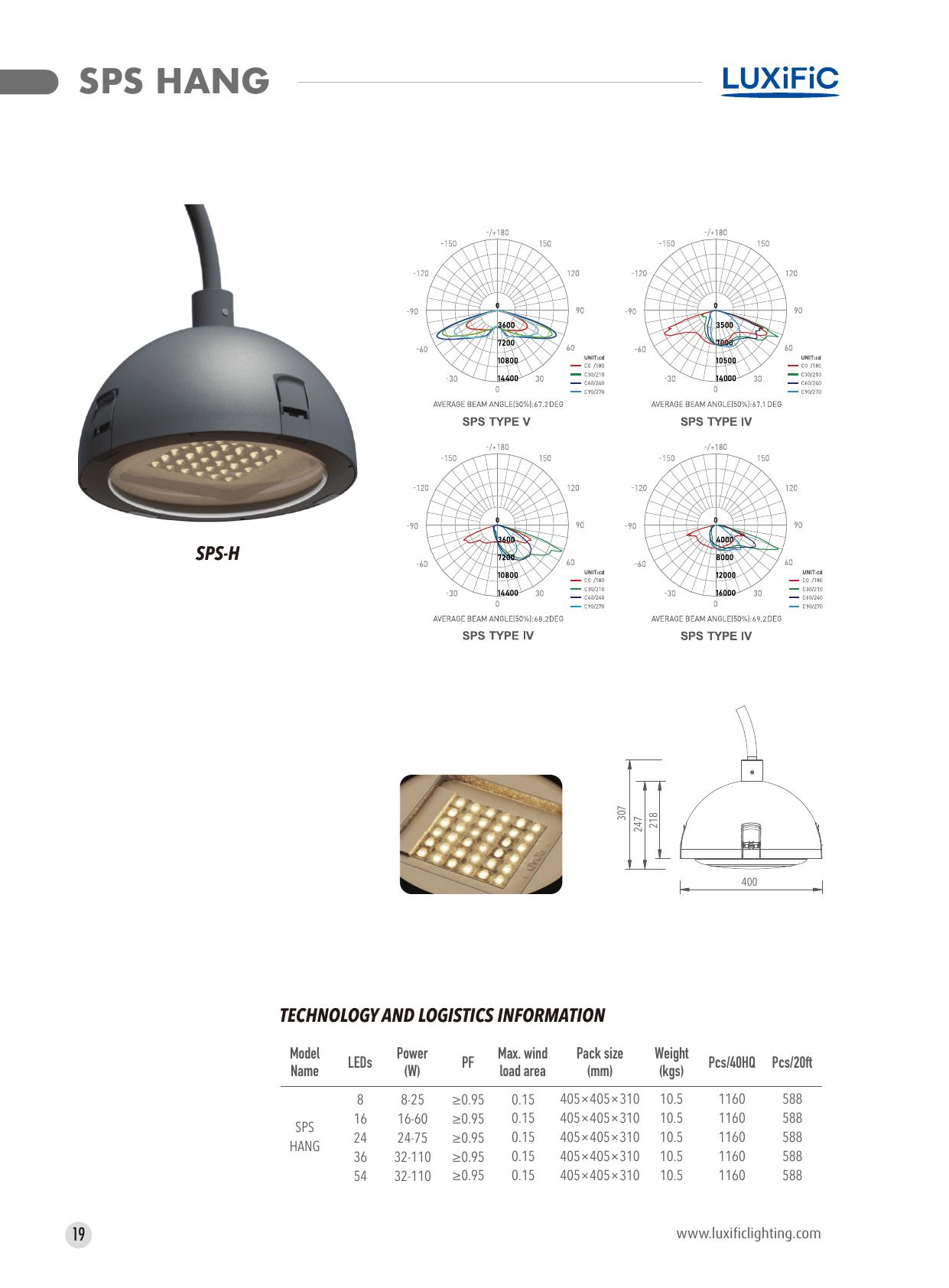

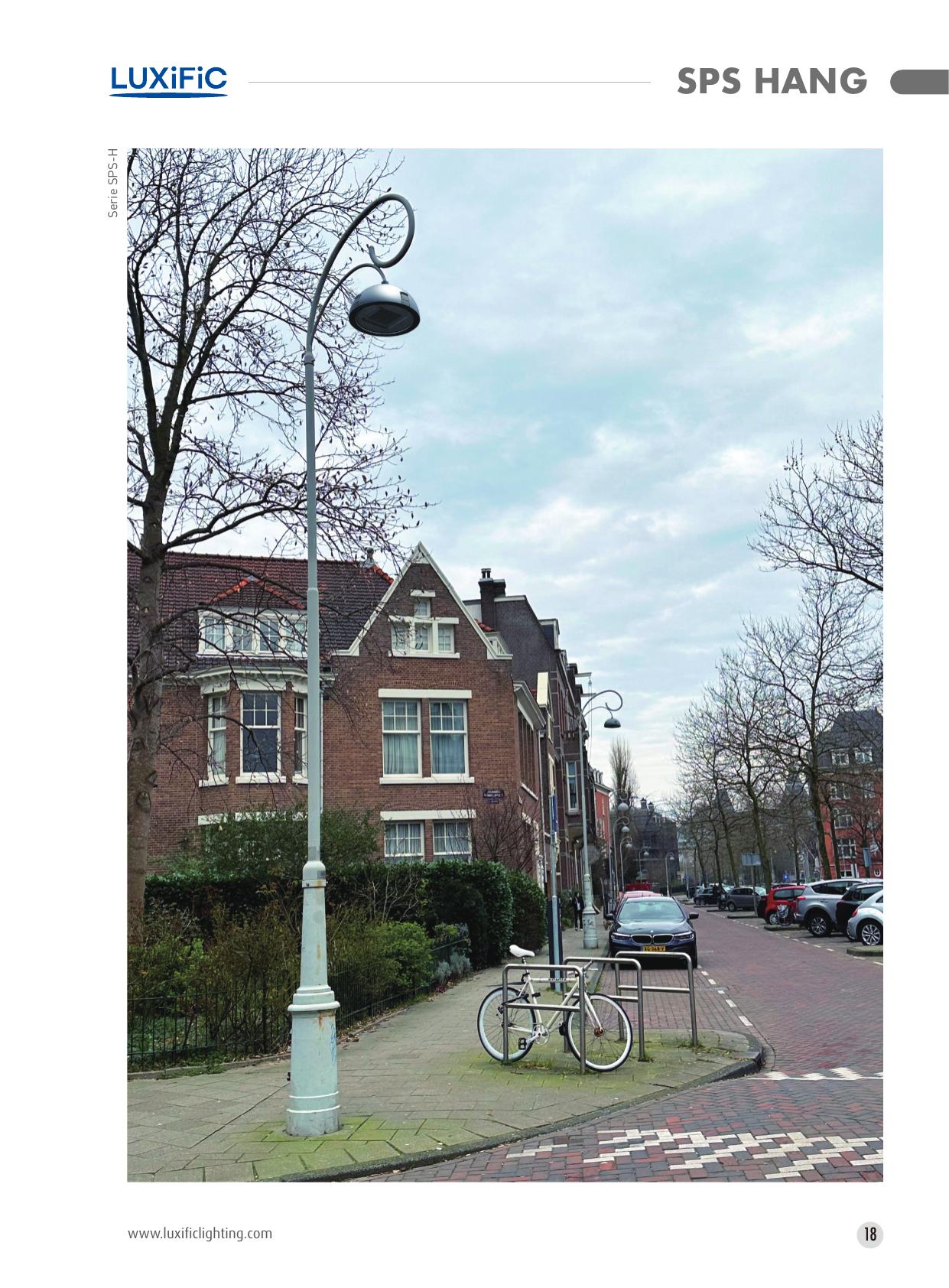

SPS-H	8–110	8 / 16 / 24 / 36 / 54

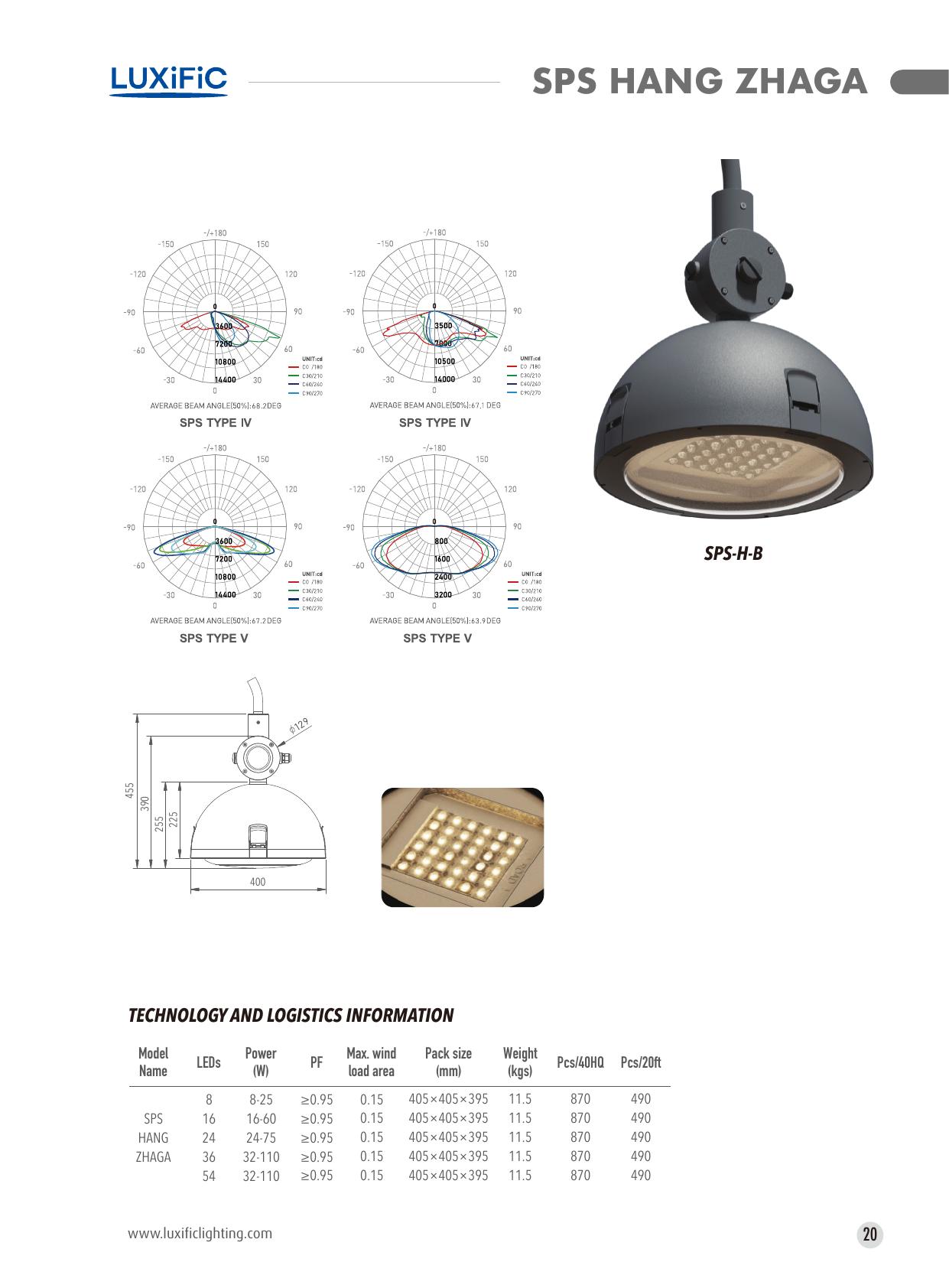

SPS-H-B	8–110	8 / 16 / 24 / 36 / 54

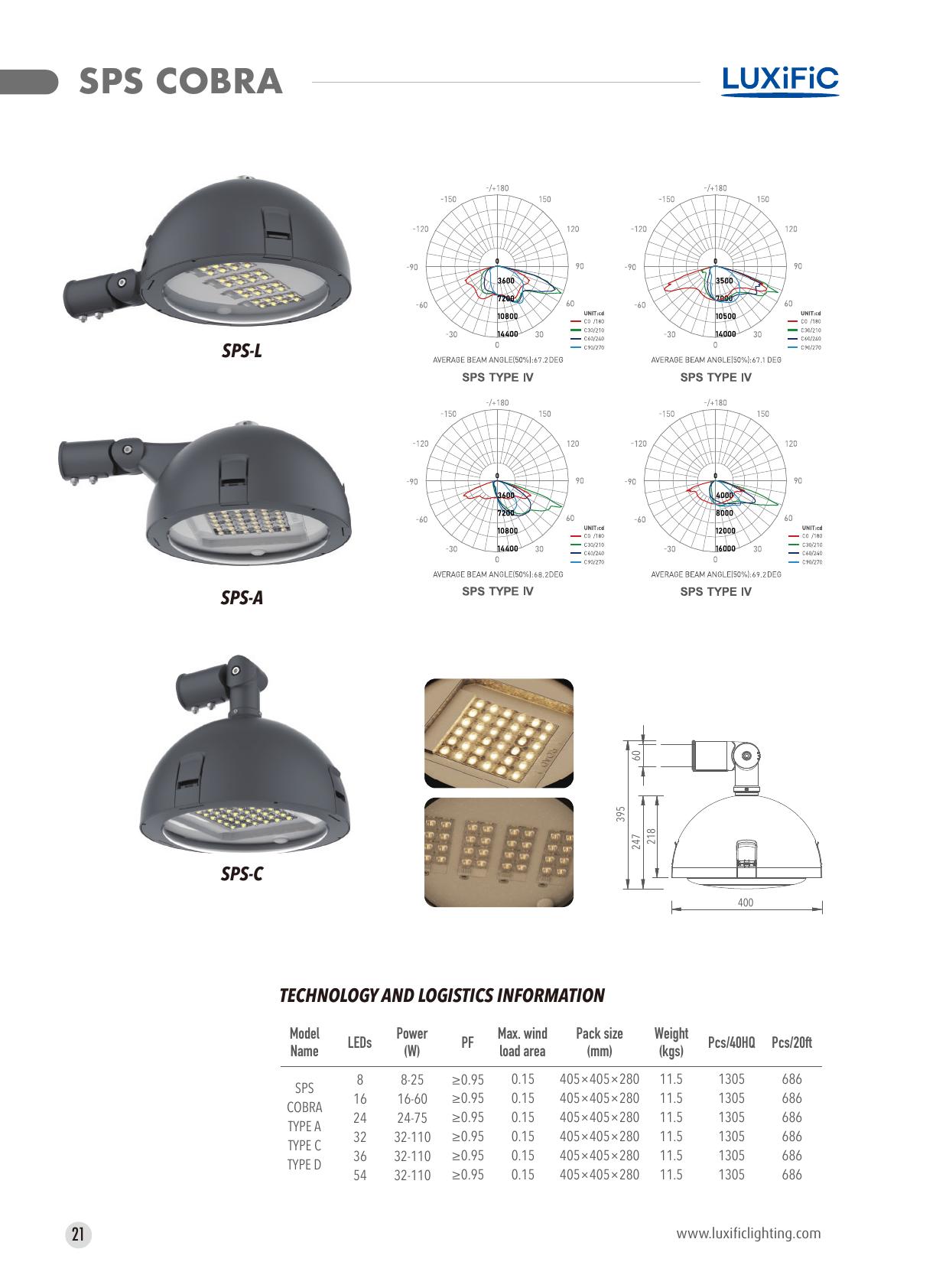

SPS COBRA	8–110	8 / 16 / 24 / 32 / 36 / 54

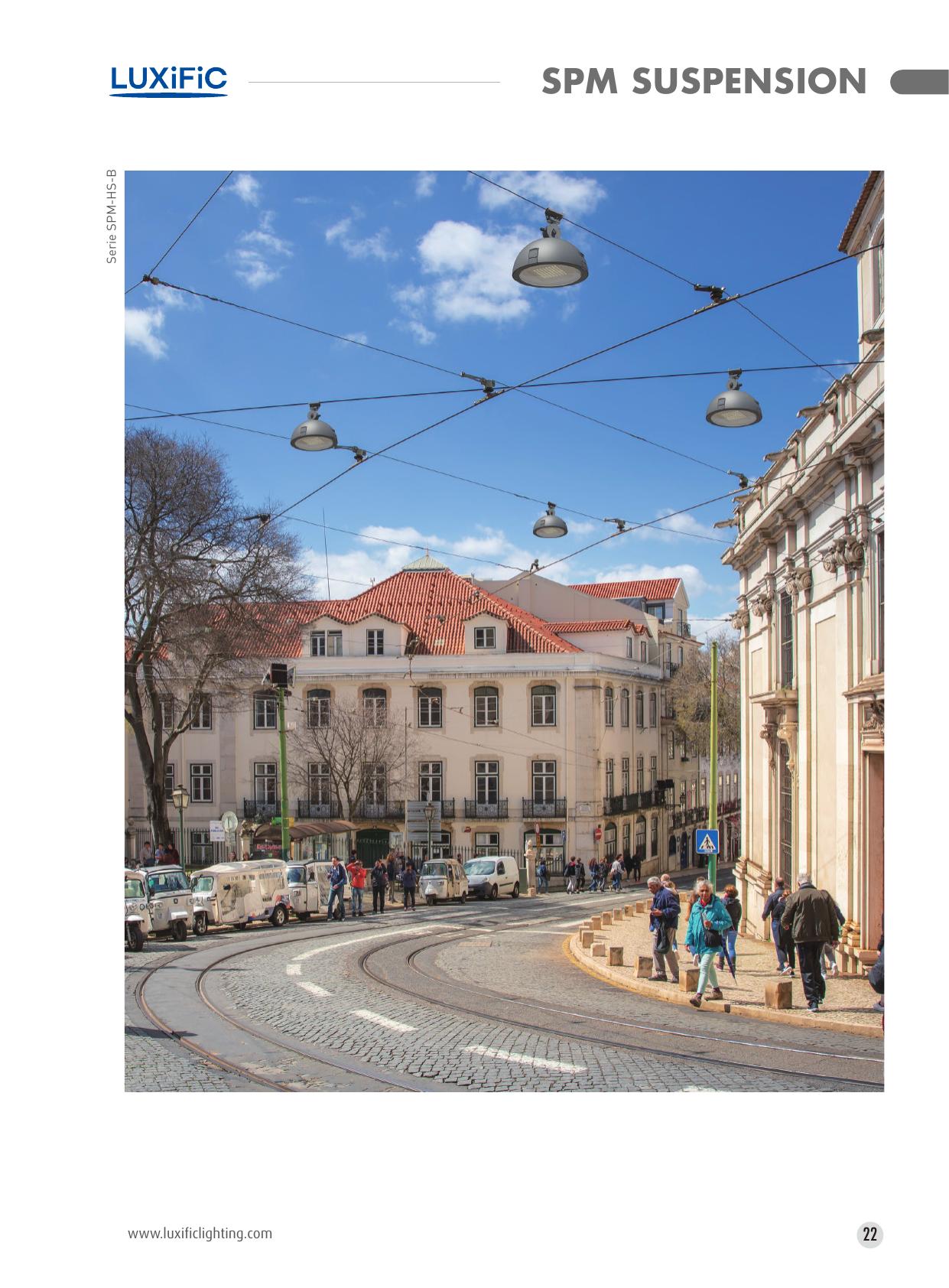

SPM-HS	15–150	16 / 32 / 48 / 64 / 96

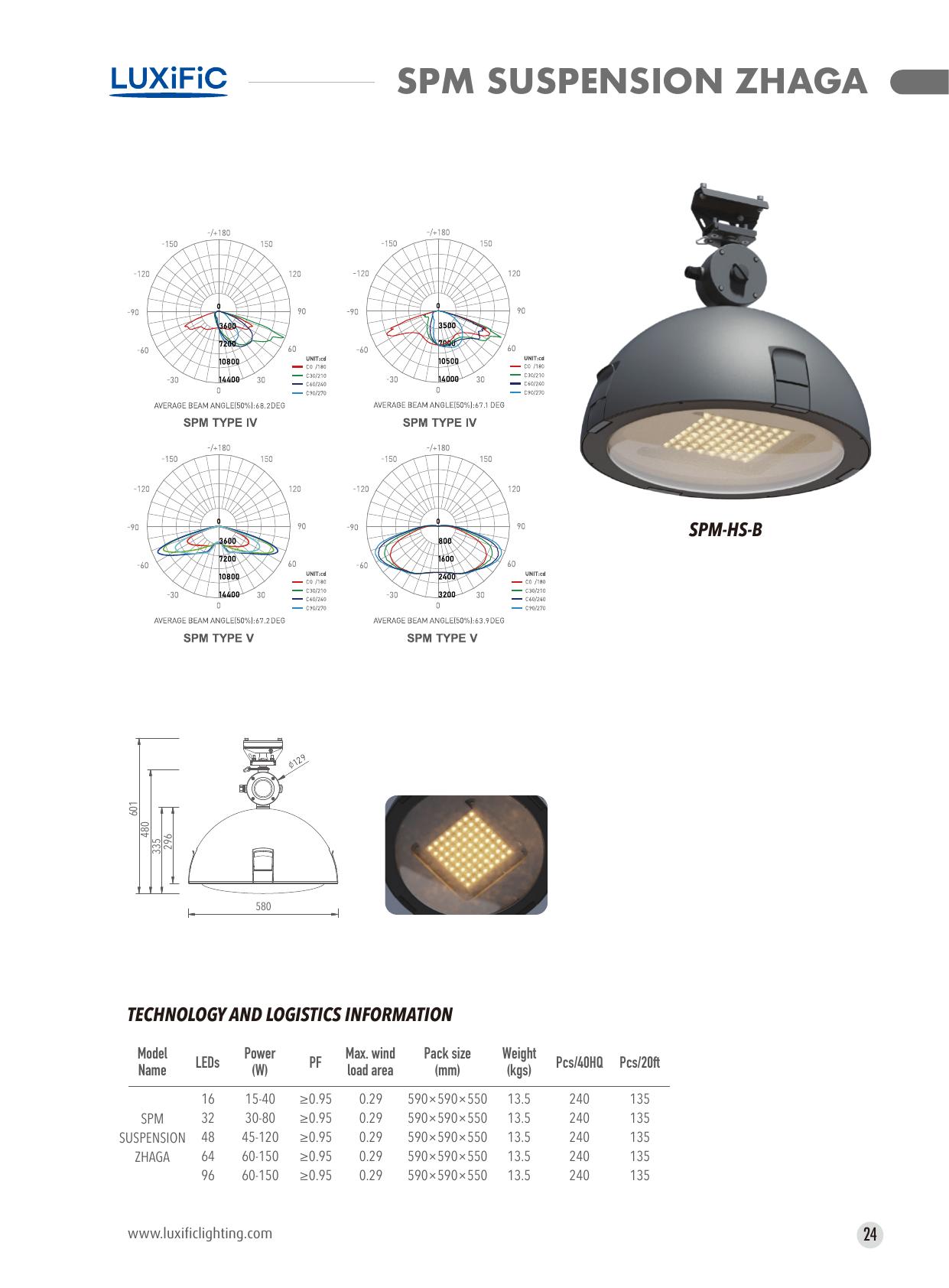

SPM-HS-B	15–150	16 / 32 / 48 / 64 / 96

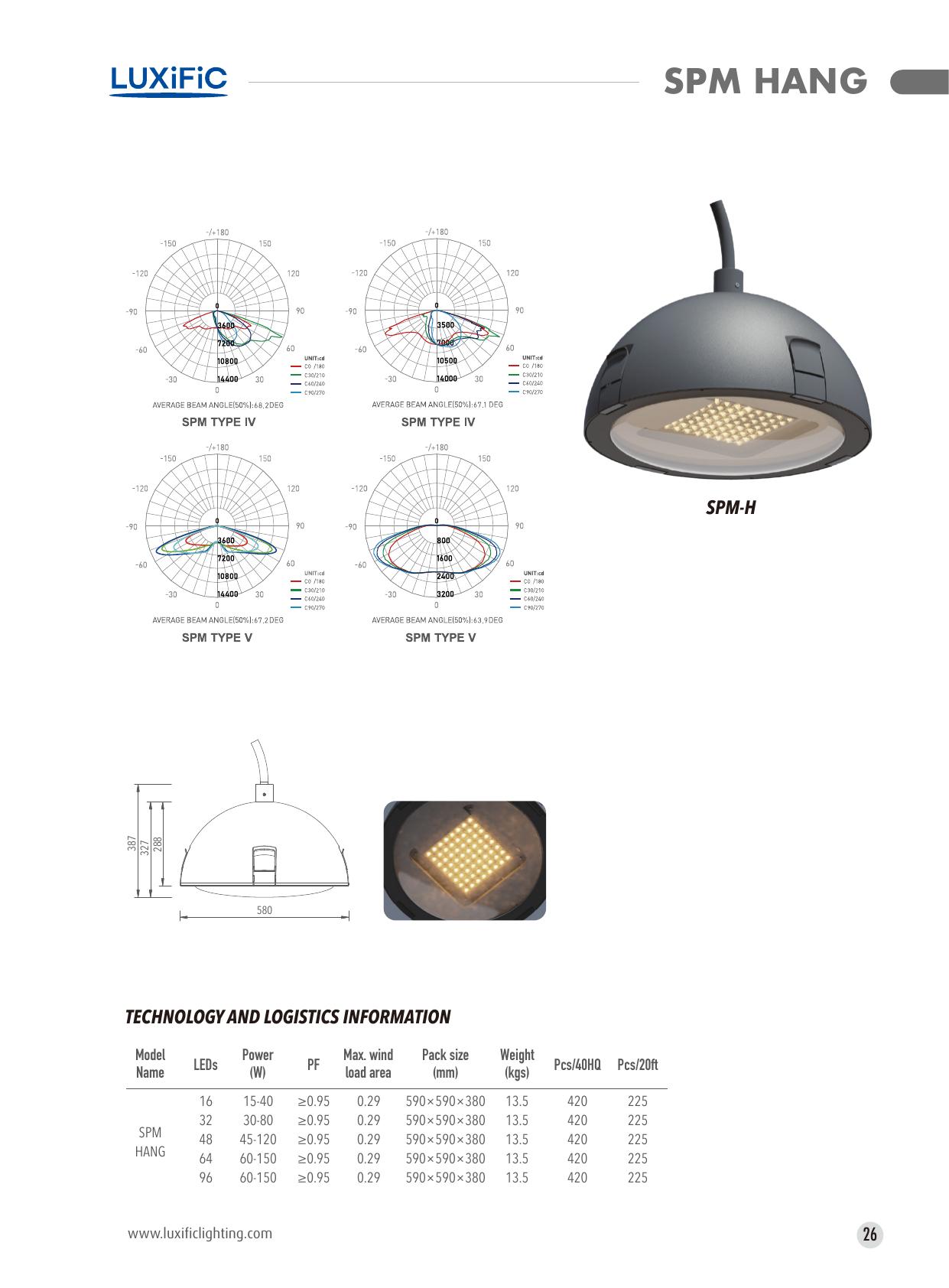

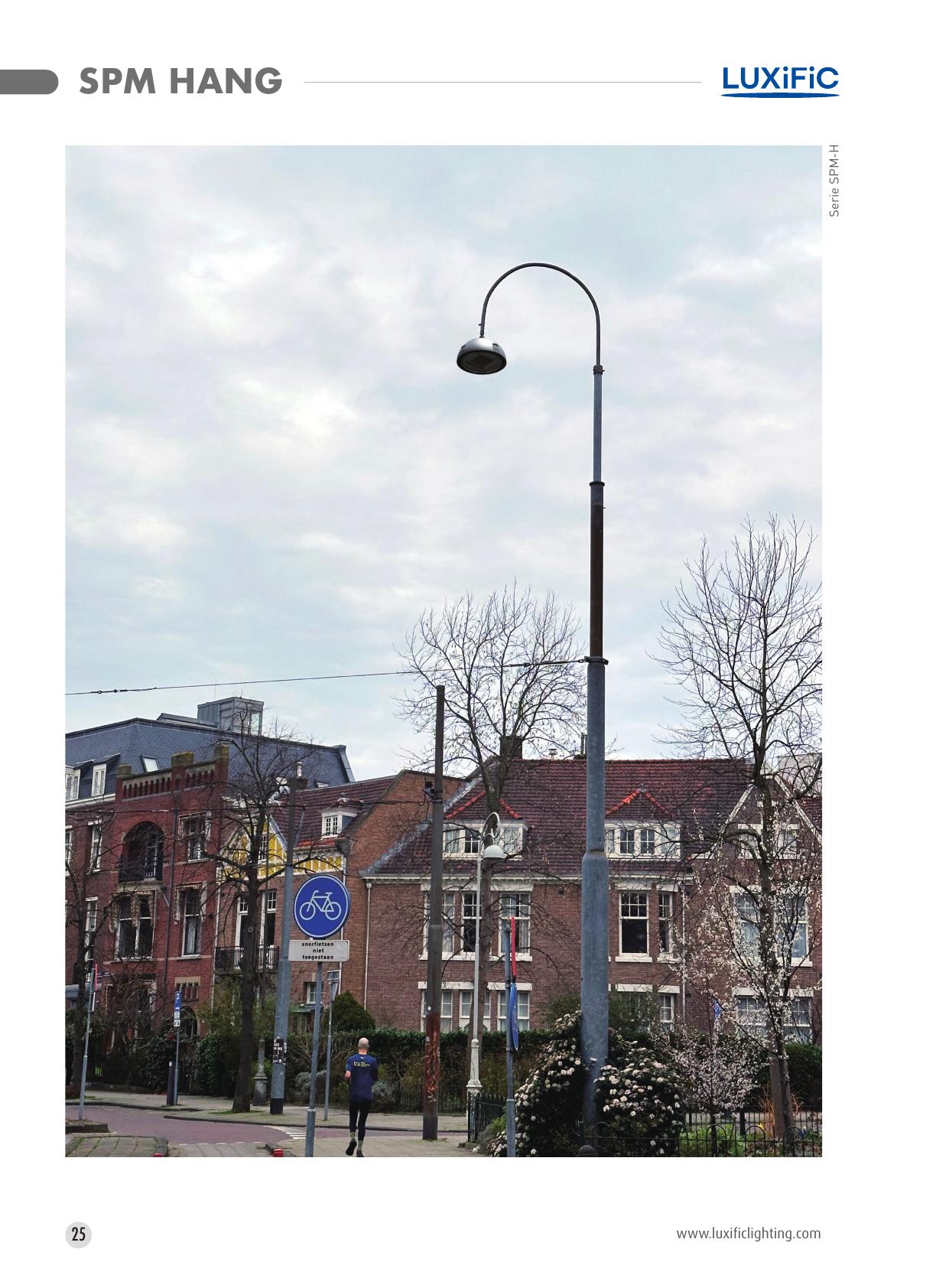

SPM-H	15–150	16 / 32 / 48 / 64 / 96

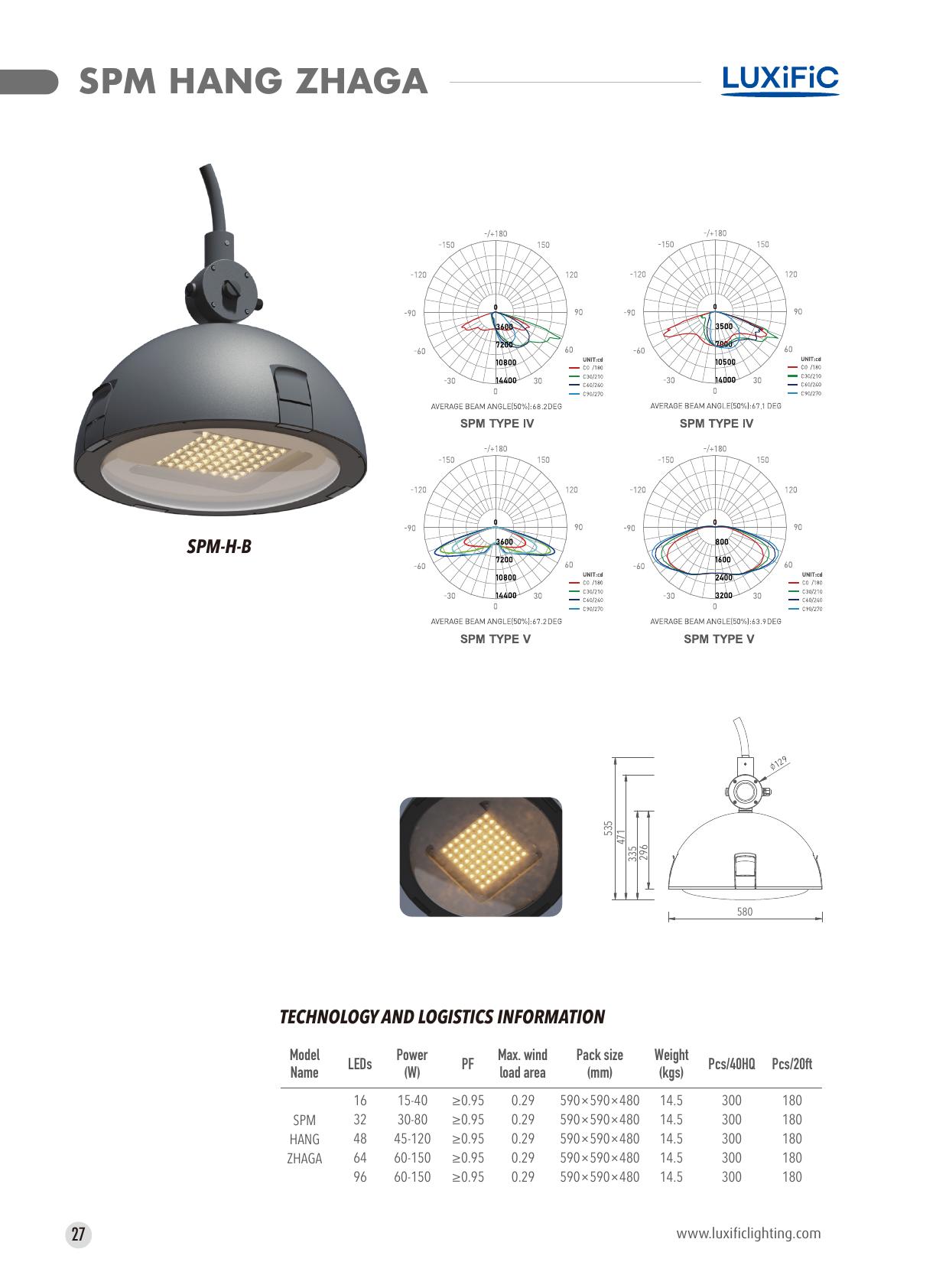

SPM-H-B	15–150	16 / 32 / 48 / 64 / 96

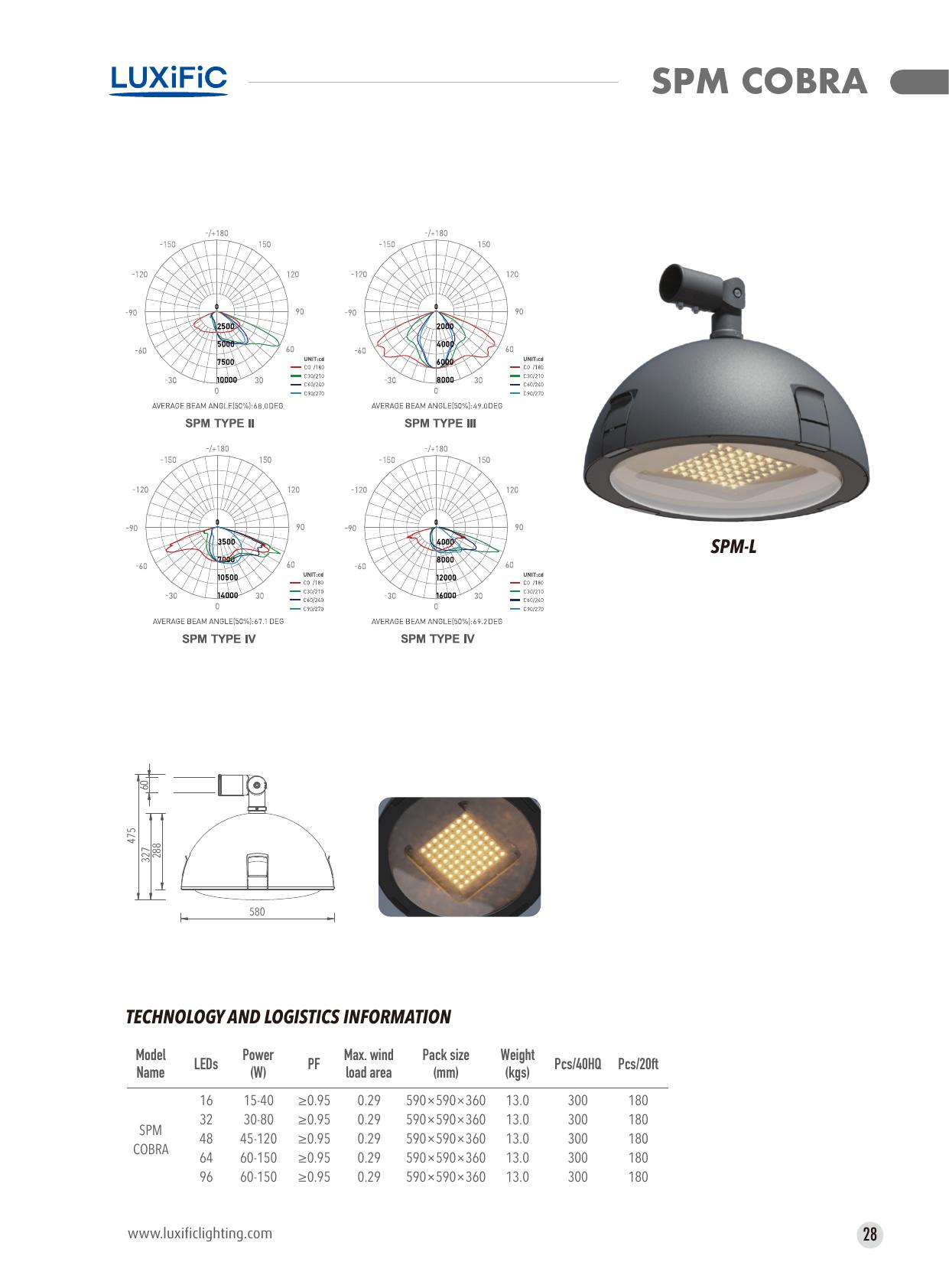

SPM-L	15–150	16 / 32 / 48 / 64 / 96

Options

Suspension, hang and cobra mounting; Zhaga variants as shown in the catalogue. Optical distributions and control interfaces are specified for the selected configuration.

Reference: supplied SP catalogue, PDF pages 3–15. Website SPS ratings are limited to 110 W to match the supplied ENEC certificate annexes. Original catalogue images are unchanged. SPS/SPM model identifiers are retained; power and LED quantity depend on the selected variant.

Tell us about your project

PRODUCT DOCUMENTATION

Certifications

Technical Resources

Class I

ENEC · CB · CE / LVD · EMC · IK · IP66

6 original documents

View certificates

Class II

ENEC · CB · CE / LVD

3 original documents

View certificates

Documents are separated by the stated electrical protection class. Scope depends on the exact models, components and configurations in each original; an ENEC+ or EMC document is not a blanket claim for every series variant.

PROJECT ANSWERS

What needs to be confirmed before production?

The model, power, optics, mounting, power supply, accessories, quantities, packaging and delivery requirements.
