How do I choose a luminaire?
Share the application, site dimensions, mounting height, location and quantities so we can review the options.
עבריתTranslation coming soonEnglishENEspañolESFrançaisFRDeutschDE日本語JAالعربيةTranslation coming soon
View all products
512 & 690 Series

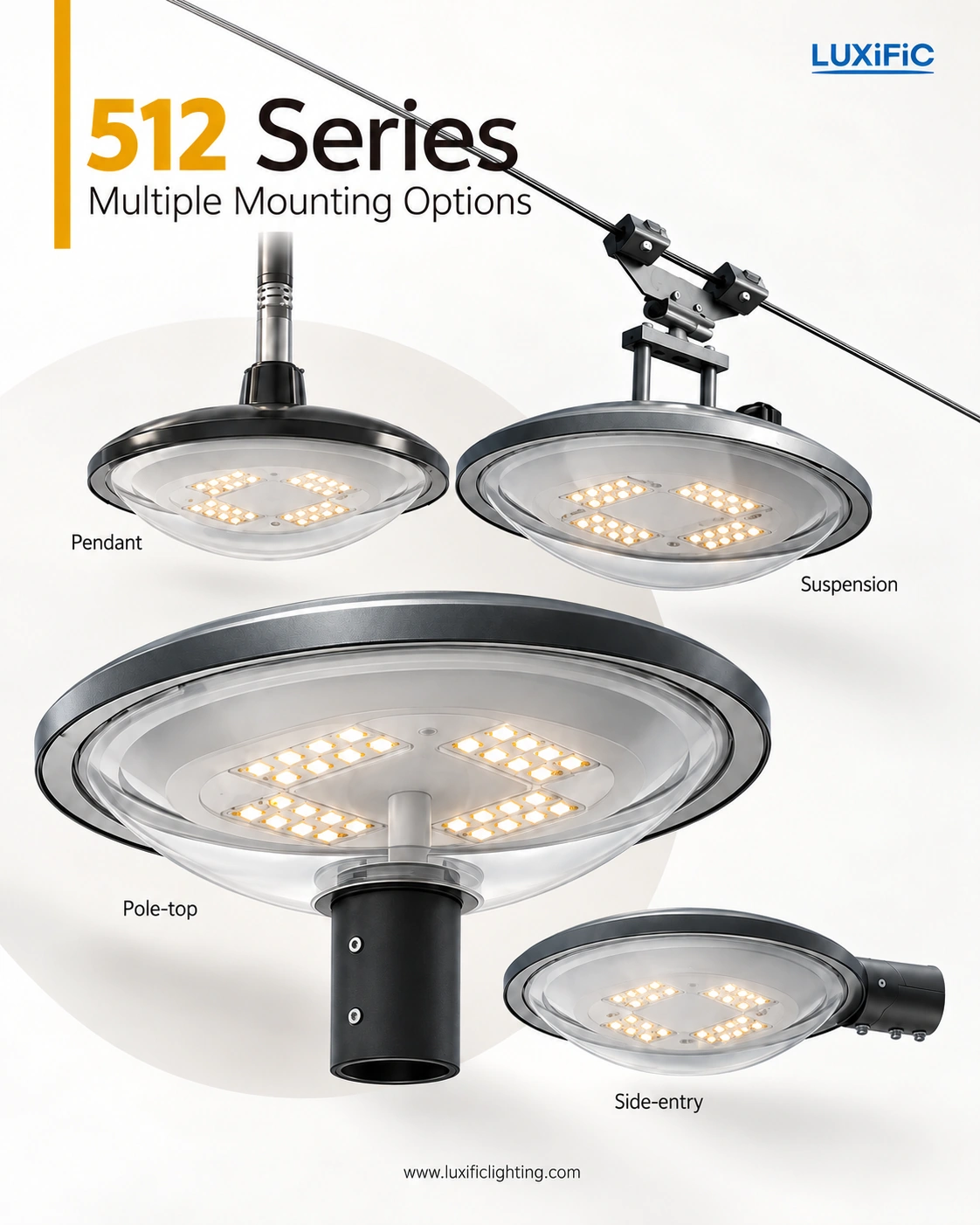

Circular outdoor luminaires in pole-top, pendant, suspension and side-entry configurations. IK10 is shown in the supplied catalogue.
Applications: Urban, landscape and residential lighting projects.
Urban streets
Landscape areas
Residential areas

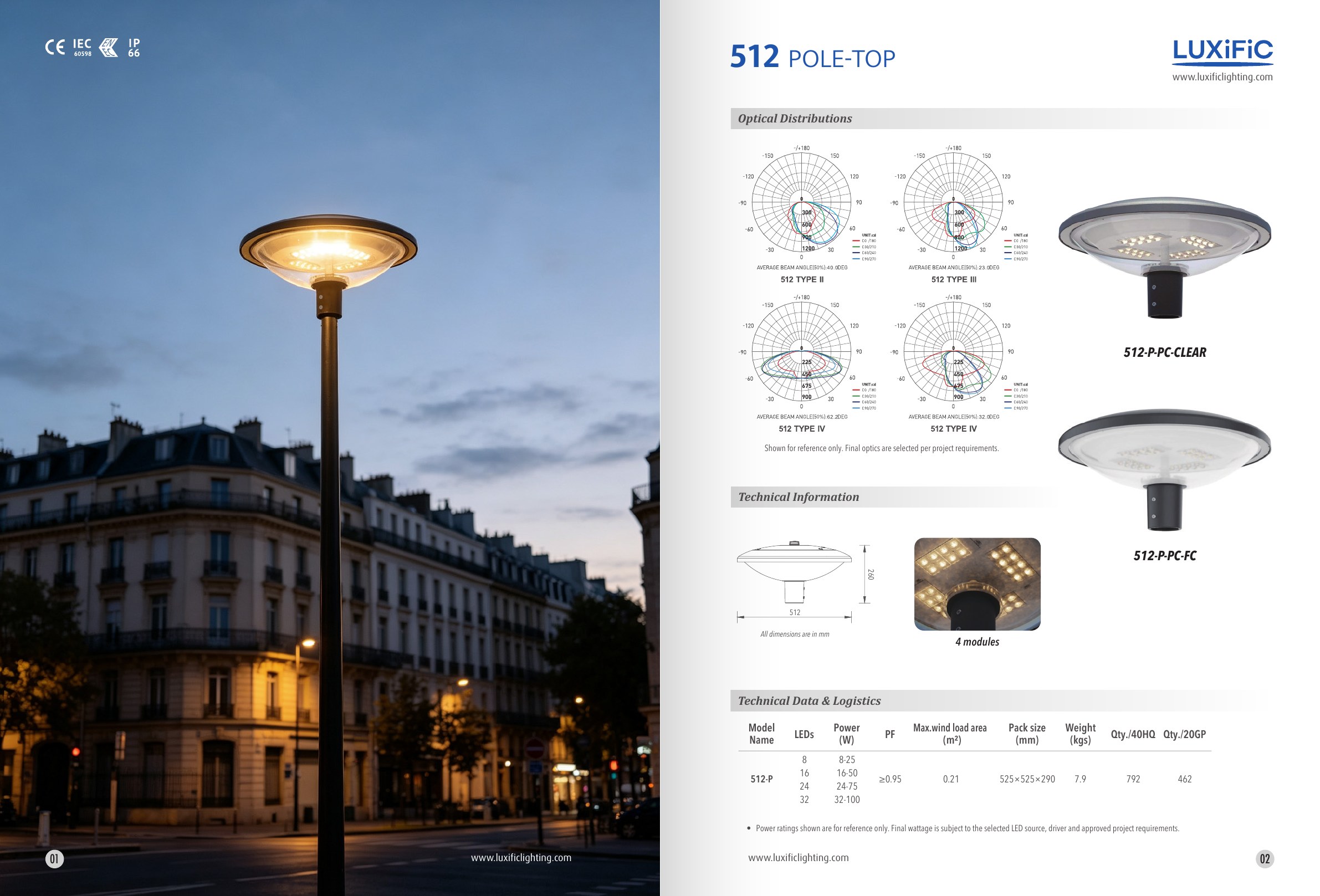

Catalogue cover · View 1 of 6
ProductDatasheet
512 & 690 SERIESSeries range: 8–140 W
| Model | Power (W) | LED Quantity (pcs) 3535/5050 |
|---|---|---|
| 512-P | 8–100 | 8 / 16 / 24 / 32 |
| 512-HP · 4 modules | 8–100 | 8 / 16 / 24 / 32 |
| 512-HP · single module | 12–100 | 12 / 24 / 36 |
| 512-HS · 4 modules | 8–100 | 8 / 16 / 24 / 32 |
| 512-HS · single module | 12–100 | 12 / 24 / 36 |
| 512-L · 4 modules | 8–100 | 8 / 16 / 24 / 32 |
| 512-L · single module | 12–100 | 12 / 24 / 36 |

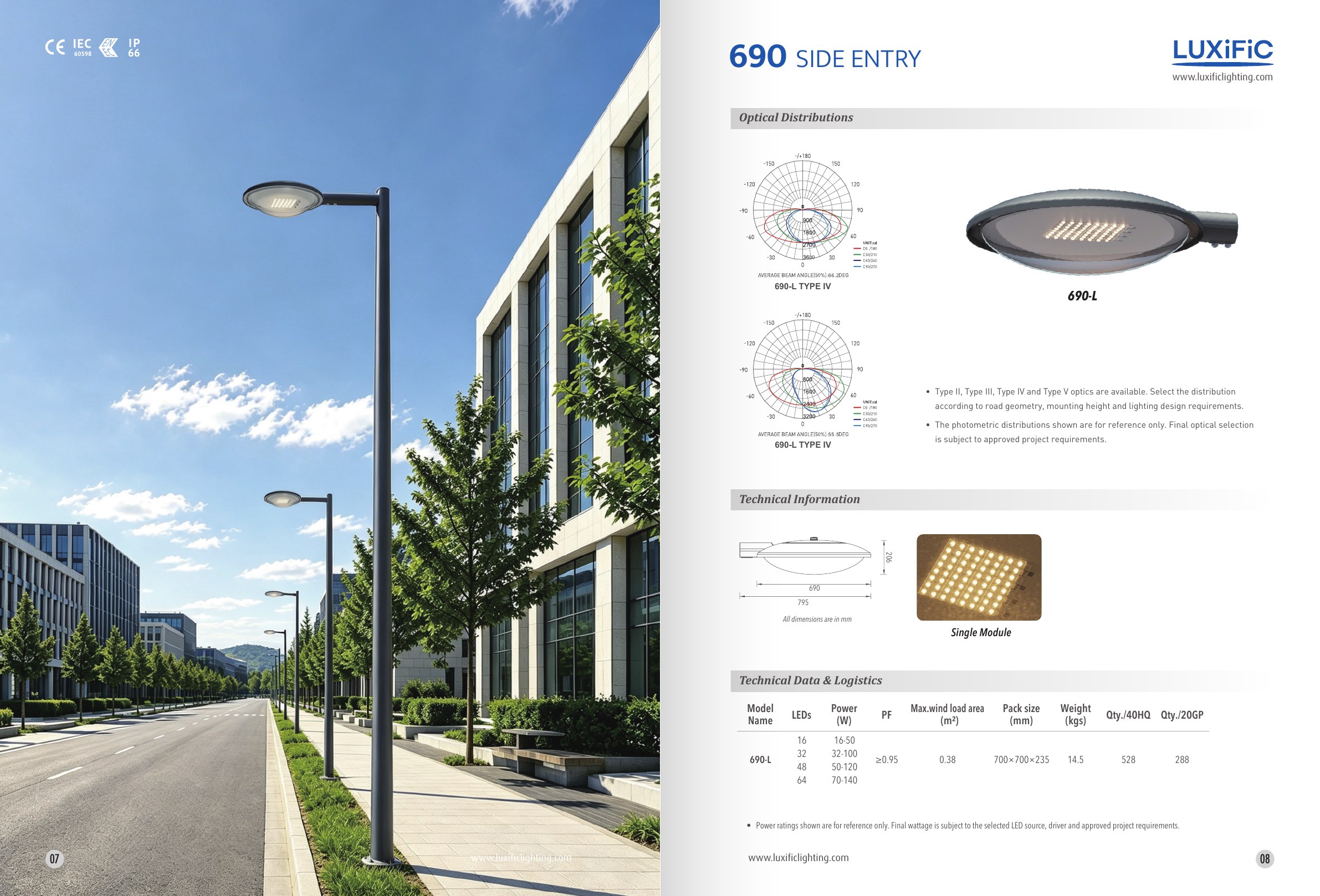

| 690-L | 16–140 | 16 / 32 / 48 / 64 |

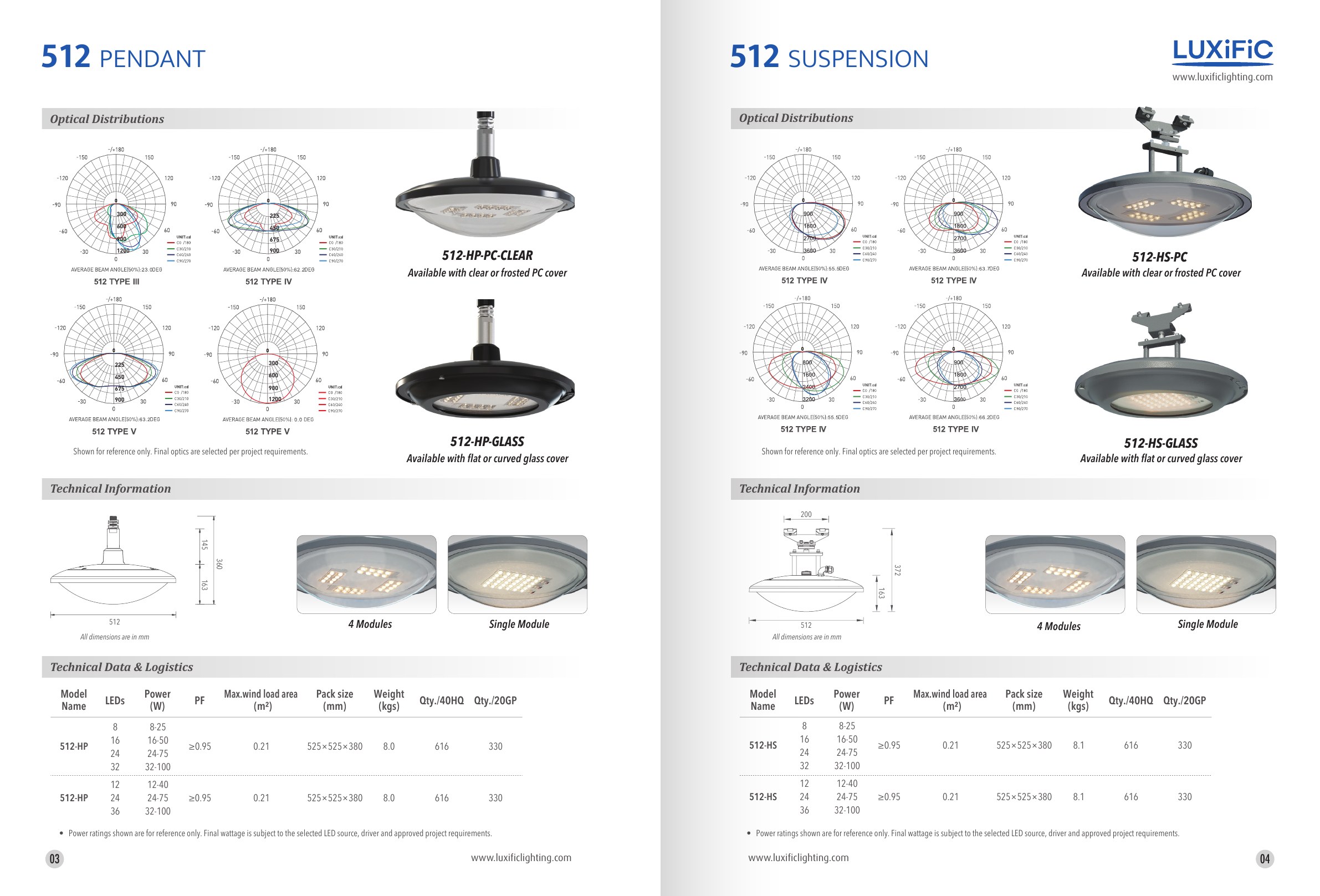

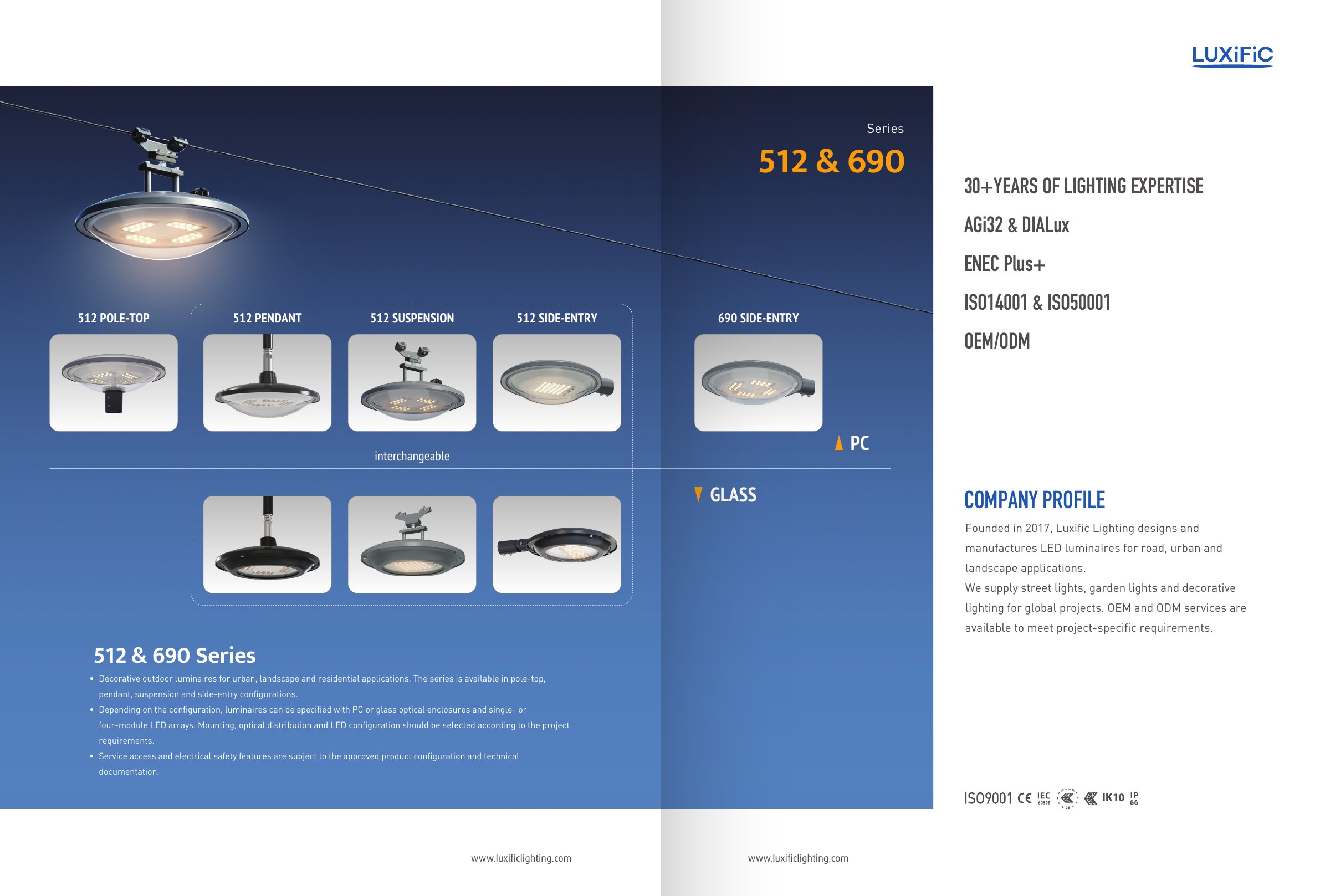

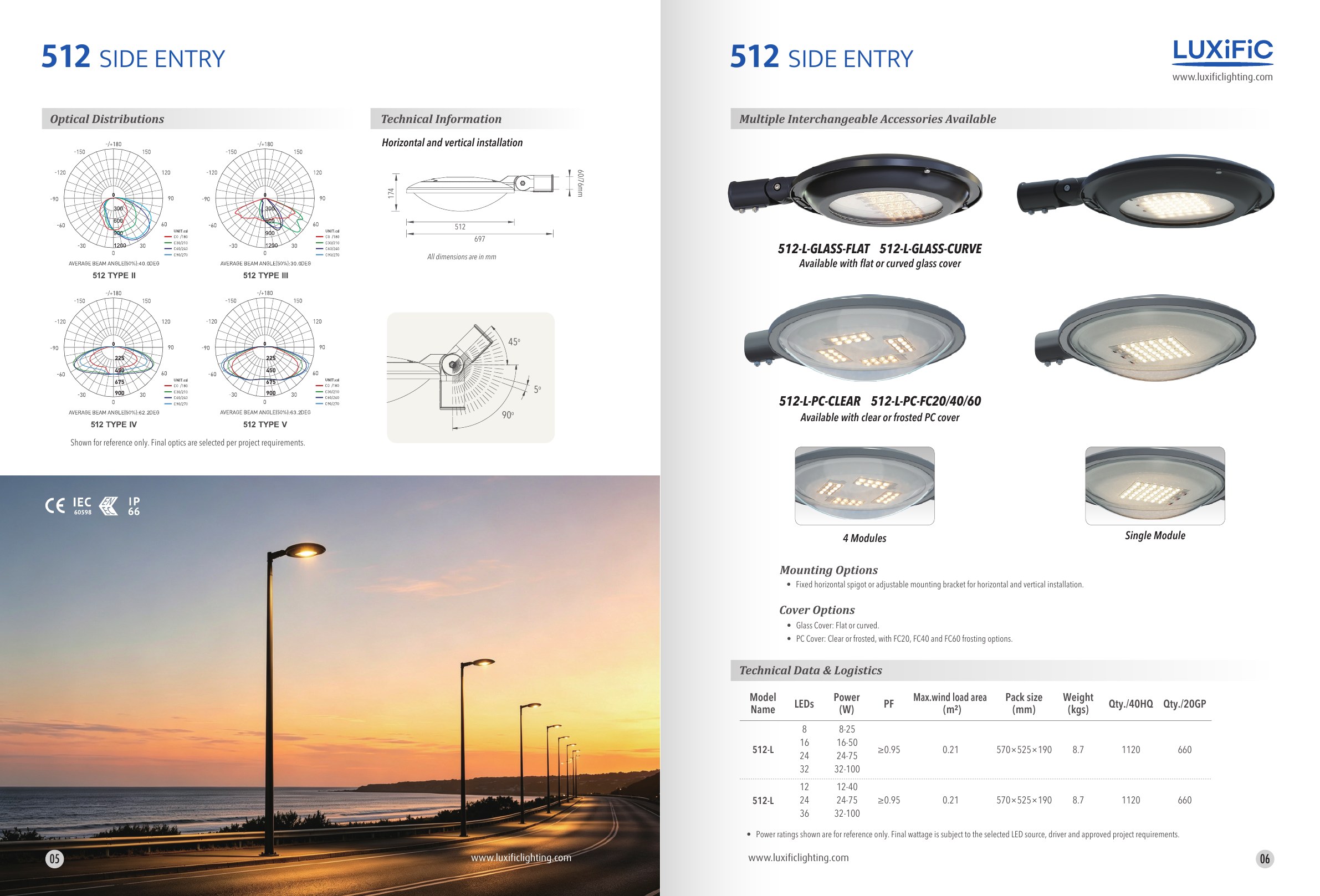

Reference: supplied 512 & 690 Catalogue V6, spreads 3–6. Single- and four-module configurations are listed separately. Final wattage depends on the selected LED source, driver and approved project requirements.
PROJECT ANSWERS
What needs to be confirmed before production?
The model, power, optics, mounting, power supply, accessories, quantities, packaging and delivery requirements.
Tell us about your projectWhich documents can I request?
Catalogues, datasheets, IES or LDT files, drawings and installation instructions. Available certificates and reports depend on the model and configuration.
What is the production lead time?
The indicative lead time is 45 days. We confirm timing according to the configuration and order quantity. Transport is arranged separately.
