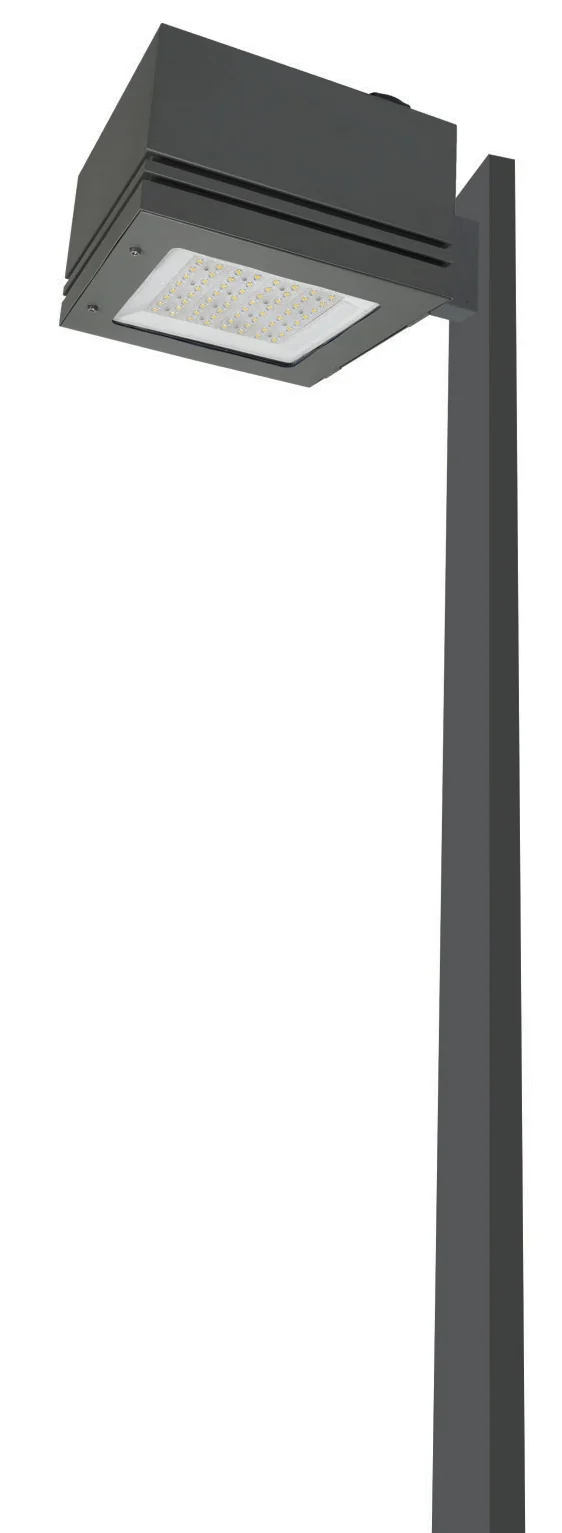

Side-entry
Configuration shown in the supplied catalogue. Ask for the matching dimensional drawing and photometric file.
DECORATIVE LUMINAIRE · 09
BOXLED ST
BOXLED ST is a decorative outdoor LED luminaire with side-entry / wall options for project-specific installation.
- Power
- 20–150 W
- LED options
- 16 / 32 / 48 / 64 LEDs
- Power factor
- ≥ 0.95
- Mounting
- Side-entry / wall
CONFIGURATION OVERVIEW
Built around the way
the project is installed.
This family combines the supplied catalogue configuration with a clear project-selection process. Confirm the exact mounting, optical distribution and technical file before final approval.
Specifications below are transcribed from LUXIFIC Decorative Lamp Catalogue V6. Final configuration should be confirmed against the selected model and project requirements.
Rated power range20–150 W
LED package options16 / 32 / 48 / 64 LEDs
Power factor≥ 0.95
Mounting formatsSide-entry / wall
Catalogue pack size420 × 280 × 610 mm
Catalogue weight15.2 kg
Catalogue pages28–29
AVAILABLE CONFIGURATIONS
One family.
Multiple project formats.
Wall-mounted
Configuration shown in the supplied catalogue. Ask for the matching dimensional drawing and photometric file.
OPTICAL DISTRIBUTION
Match the luminaire
to the illuminated area.
Available distributions vary by LED package and mounting format. Request the exact IES file before photometric approval.
Type II
Paths and narrower street geometries.
Type III
General roadway and area applications.
Type IV
Wider roads, perimeter and asymmetric layouts.
Type V
Broad public areas and open-space layouts.
SUGGESTED APPLICATIONS
Considered for public environments.
Building perimetersGatewaysHistoric wallsArchitectural paths
Application images illustrate intended use and are not presented as named completed-project references.
ENGINEERING RFQ
Specify BOXLED ST
for your project.
Share mounting height, pole or bracket drawing, quantity, target wattage and project location. We will respond with the relevant configuration and technical files.

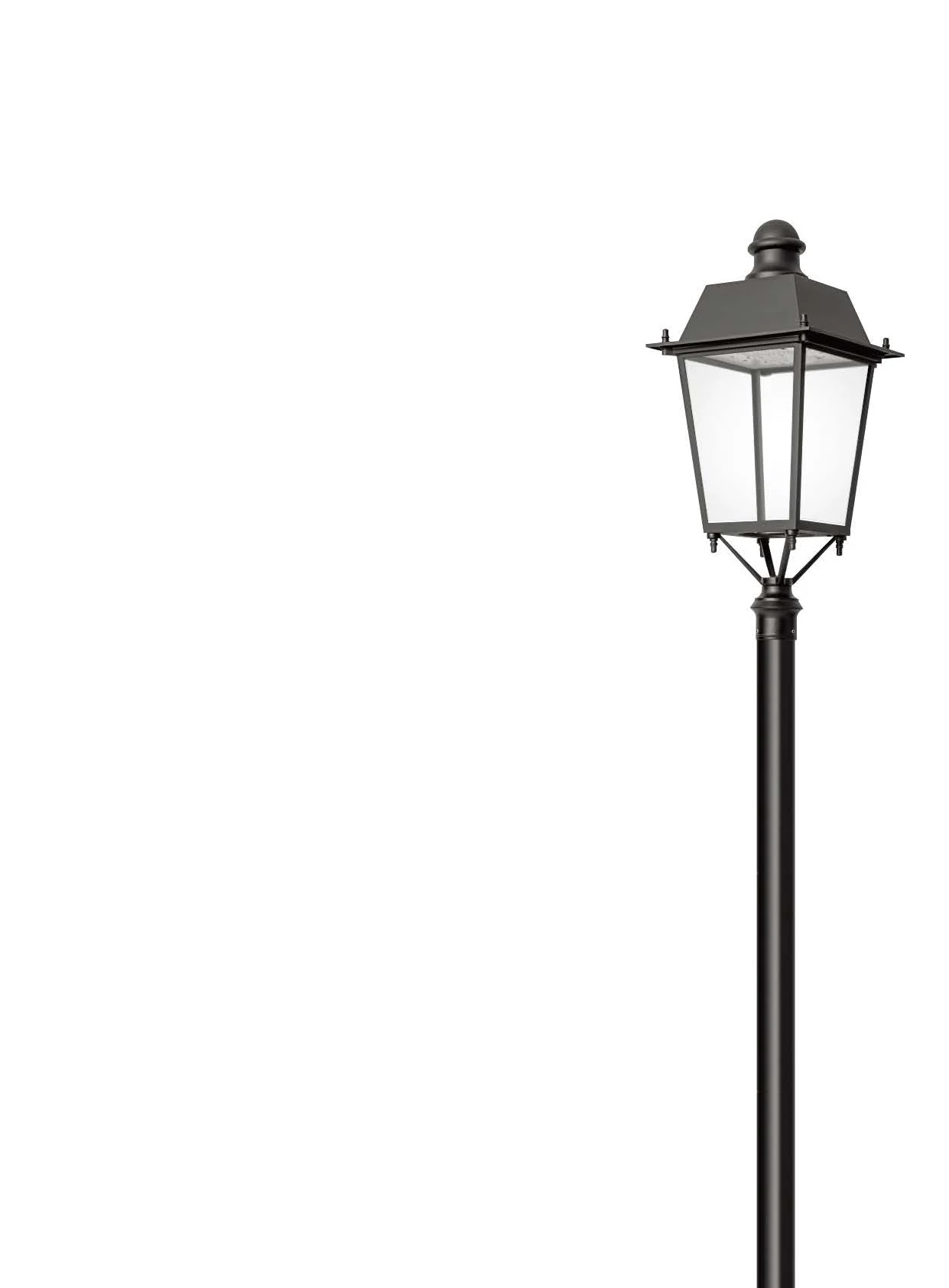

RELATED DECORATIVE LUMINAIRES
