512 POLETOP
Configuration shown in the supplied catalogue. Ask for the matching dimensional drawing and photometric file.
DECORATIVE LUMINAIRE · 10
512 SERIES
512 SERIES is a decorative outdoor LED luminaire with pole-top / suspension / cobra options for project-specific installation.
- Power
- 8–100 W
- LED options
- 8 / 16 / 24 / 32 / 36 LEDs
- Power factor
- ≥ 0.95
- Mounting
- Pole-top / suspension / cobra
CONFIGURATION OVERVIEW
Built around the way
the project is installed.
This family combines the supplied catalogue configuration with a clear project-selection process. Confirm the exact mounting, optical distribution and technical file before final approval.
Specifications below are transcribed from LUXIFIC Decorative Lamp Catalogue V6. Final configuration should be confirmed against the selected model and project requirements.
Rated power range8–100 W
LED package options8 / 16 / 24 / 32 / 36 LEDs
Power factor≥ 0.95
Mounting formatsPole-top / suspension / cobra
Catalogue pack sizeVariant dependent
Catalogue weight10.5–12.5 kg
Catalogue pages30–33
AVAILABLE CONFIGURATIONS
One family.
Multiple project formats.

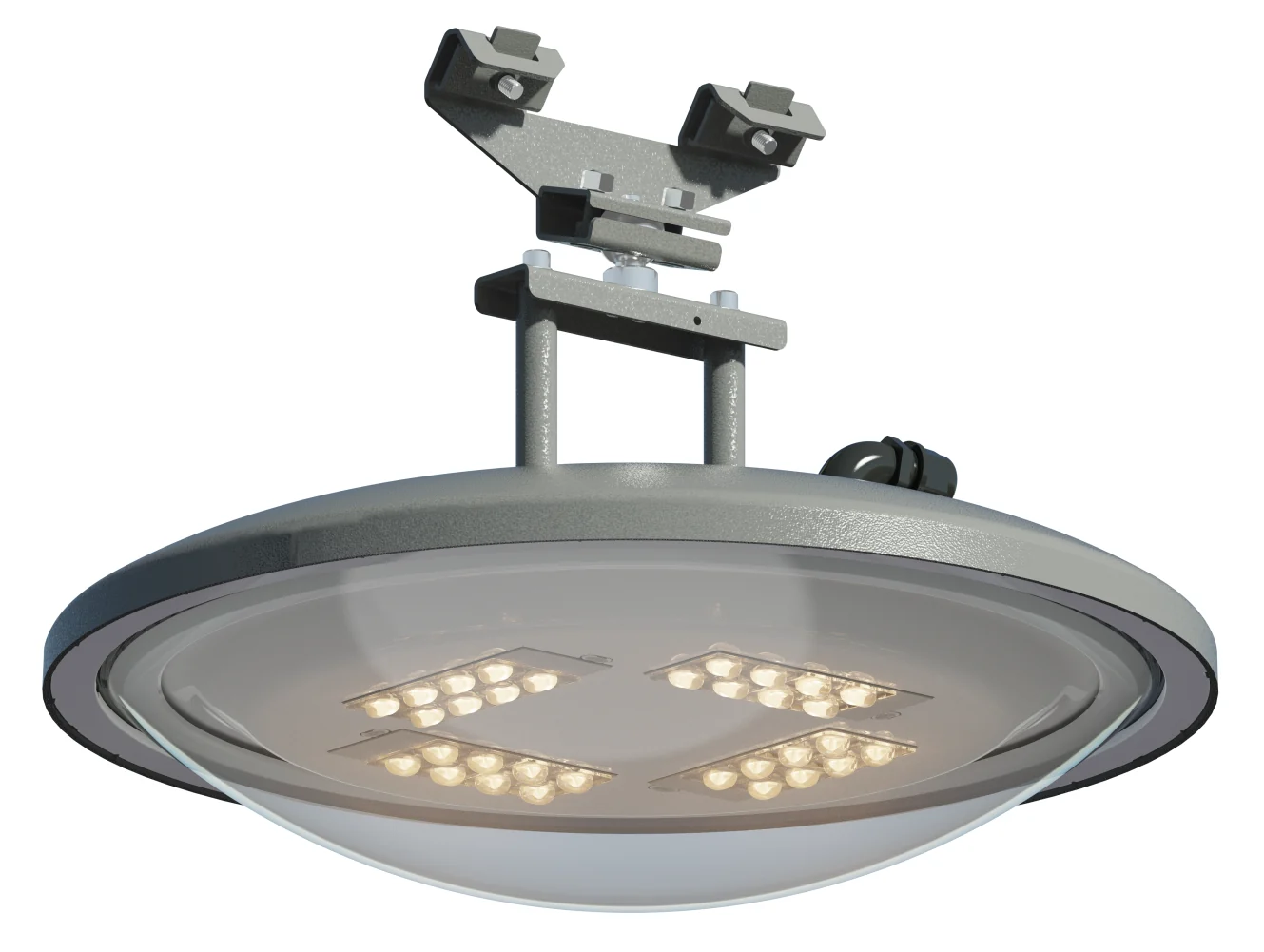

512 SUSPENSION
Configuration shown in the supplied catalogue. Ask for the matching dimensional drawing and photometric file.

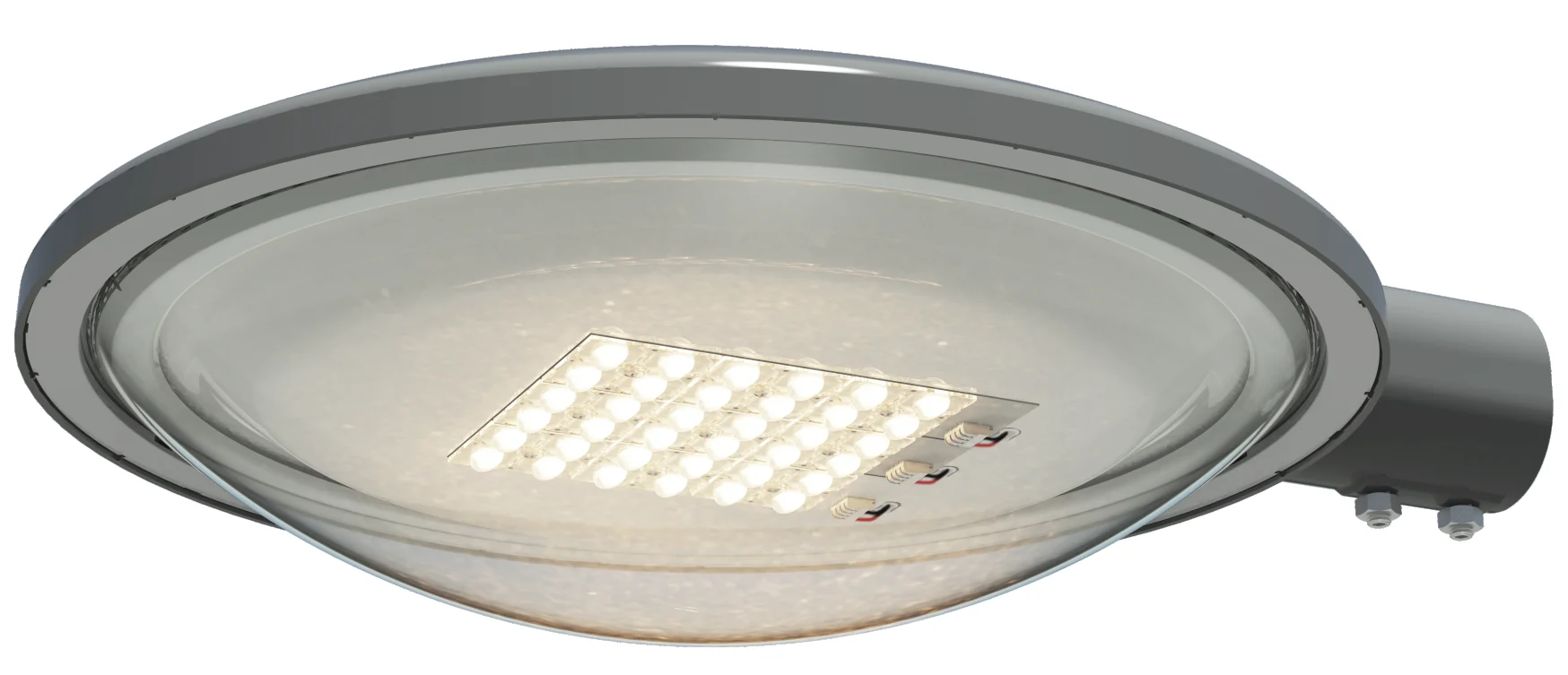

512 COBRA
Configuration shown in the supplied catalogue. Ask for the matching dimensional drawing and photometric file.
OPTICAL DISTRIBUTION
Match the luminaire
to the illuminated area.
Available distributions vary by LED package and mounting format. Request the exact IES file before photometric approval.
Type II
Paths and narrower street geometries.
Type III
General roadway and area applications.
Type IV
Wider roads, perimeter and asymmetric layouts.
Type V
Broad public areas and open-space layouts.
SUGGESTED APPLICATIONS
Considered for public environments.
Civic plazasUrban streetsSuspended streetscapesPublic paths

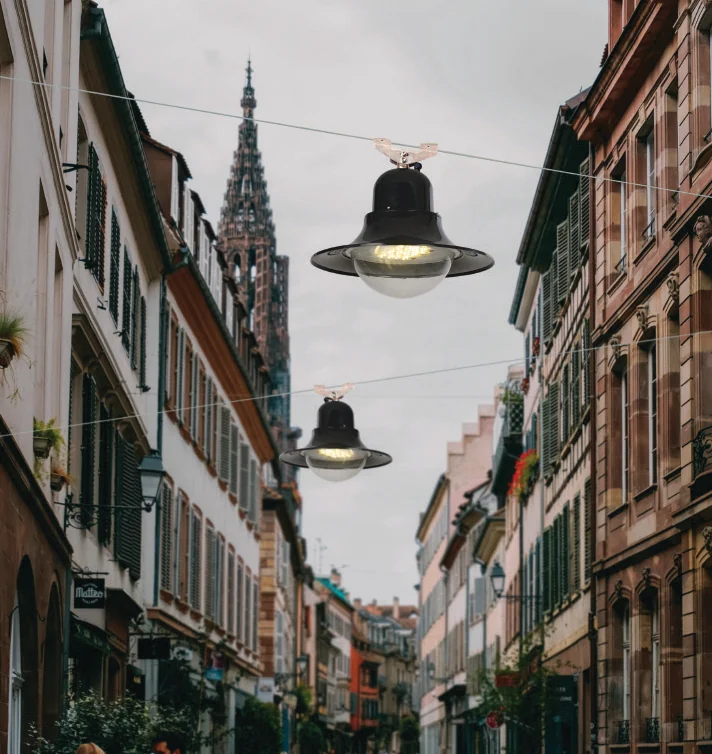

Application images illustrate intended use and are not presented as named completed-project references.
Marks shown on this catalogue series
IEC 60598IP66CEENECConfirm certification scope for the selected model and destination market.ENGINEERING RFQ
Specify 512 SERIES
for your project.
Share mounting height, pole or bracket drawing, quantity, target wattage and project location. We will respond with the relevant configuration and technical files.
