HELIOS Series

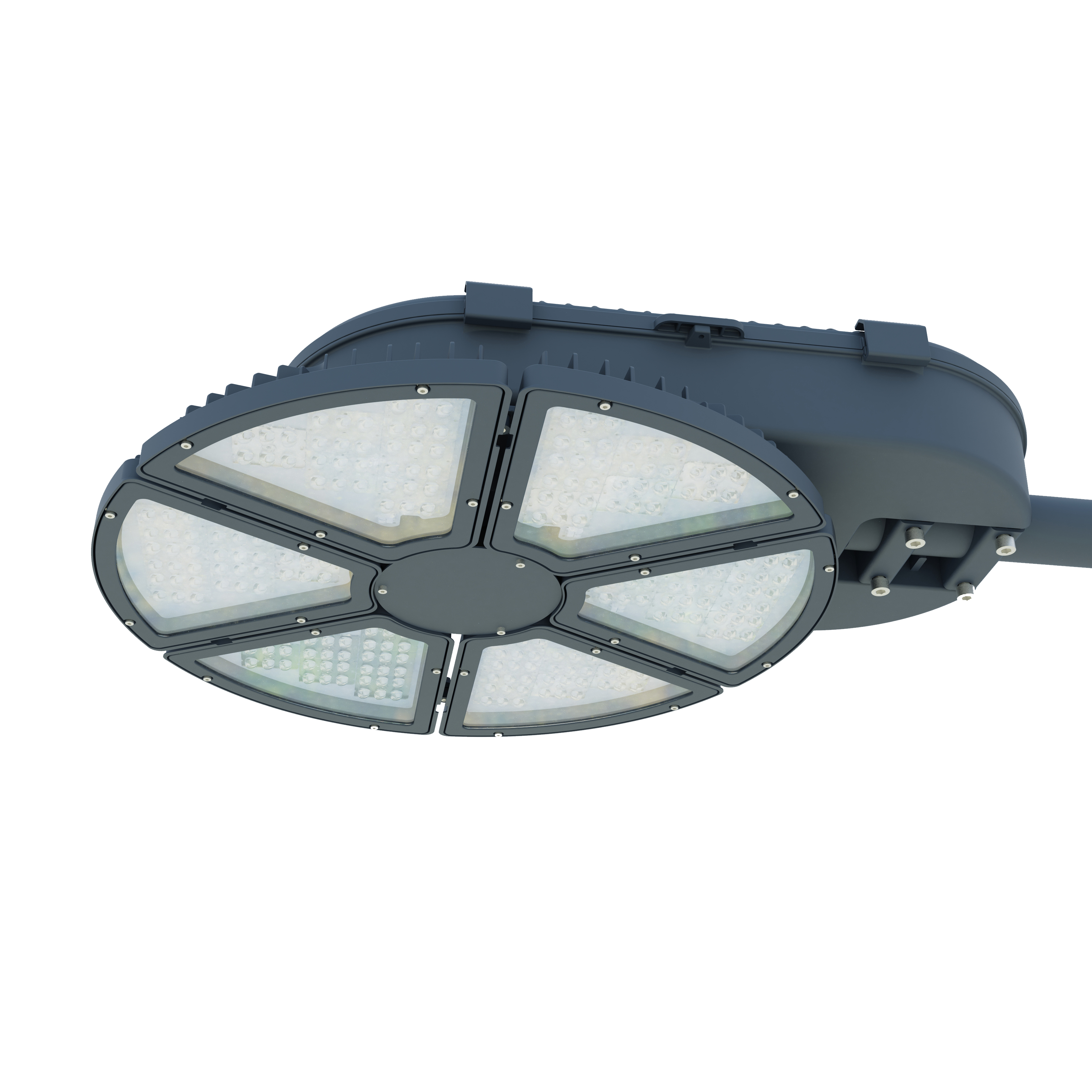

HELIOS family luminaire from the original product material — HELIOS family

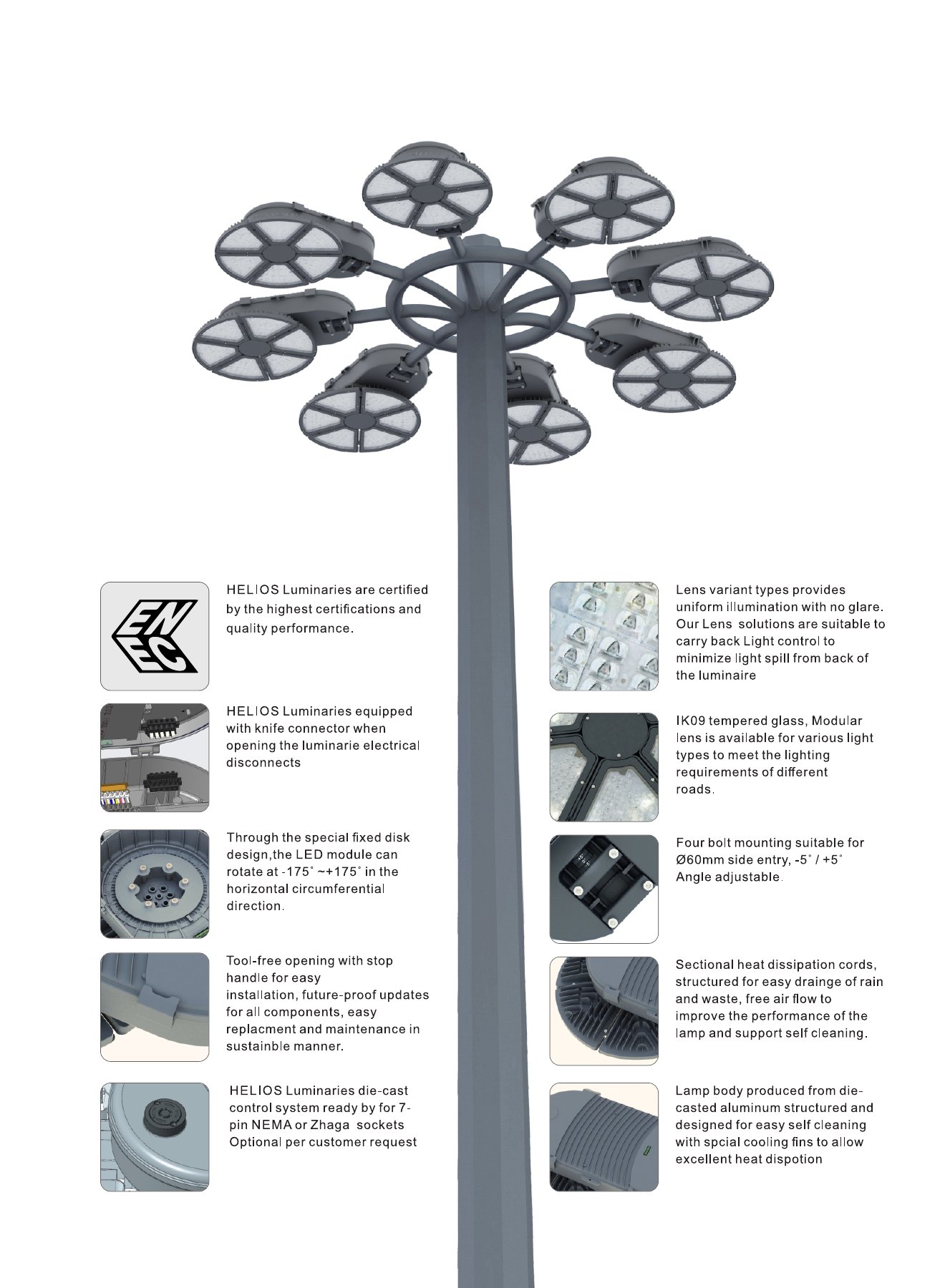

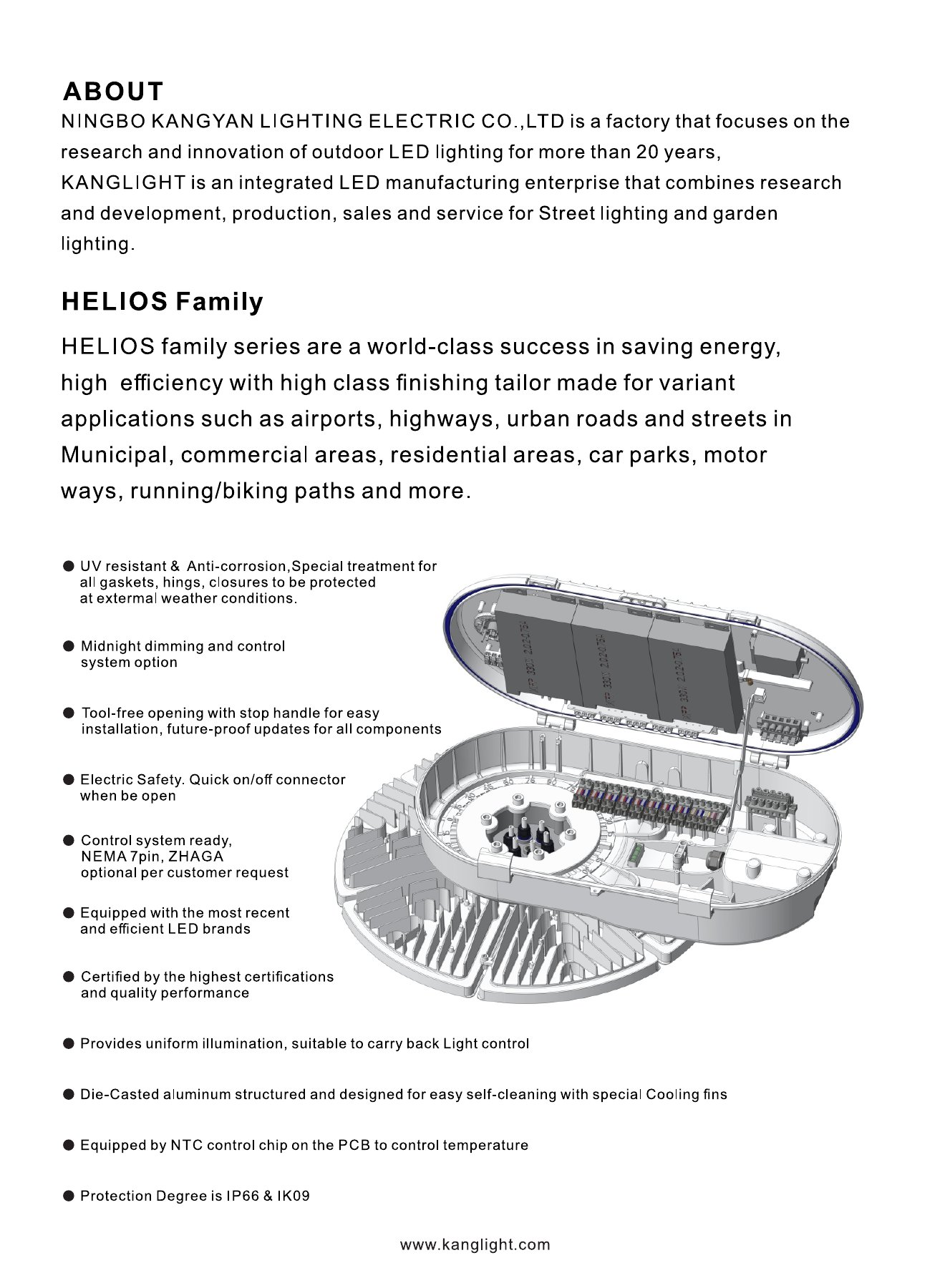

Circular high-mast and large-area LED luminaires with adjustable optical modules. IP66 and IK09 are shown in the supplied catalogue.

Applications: Highways, airports, urban roads, commercial areas and car parks.

Highways

Airports

Car parks

Commercial areas

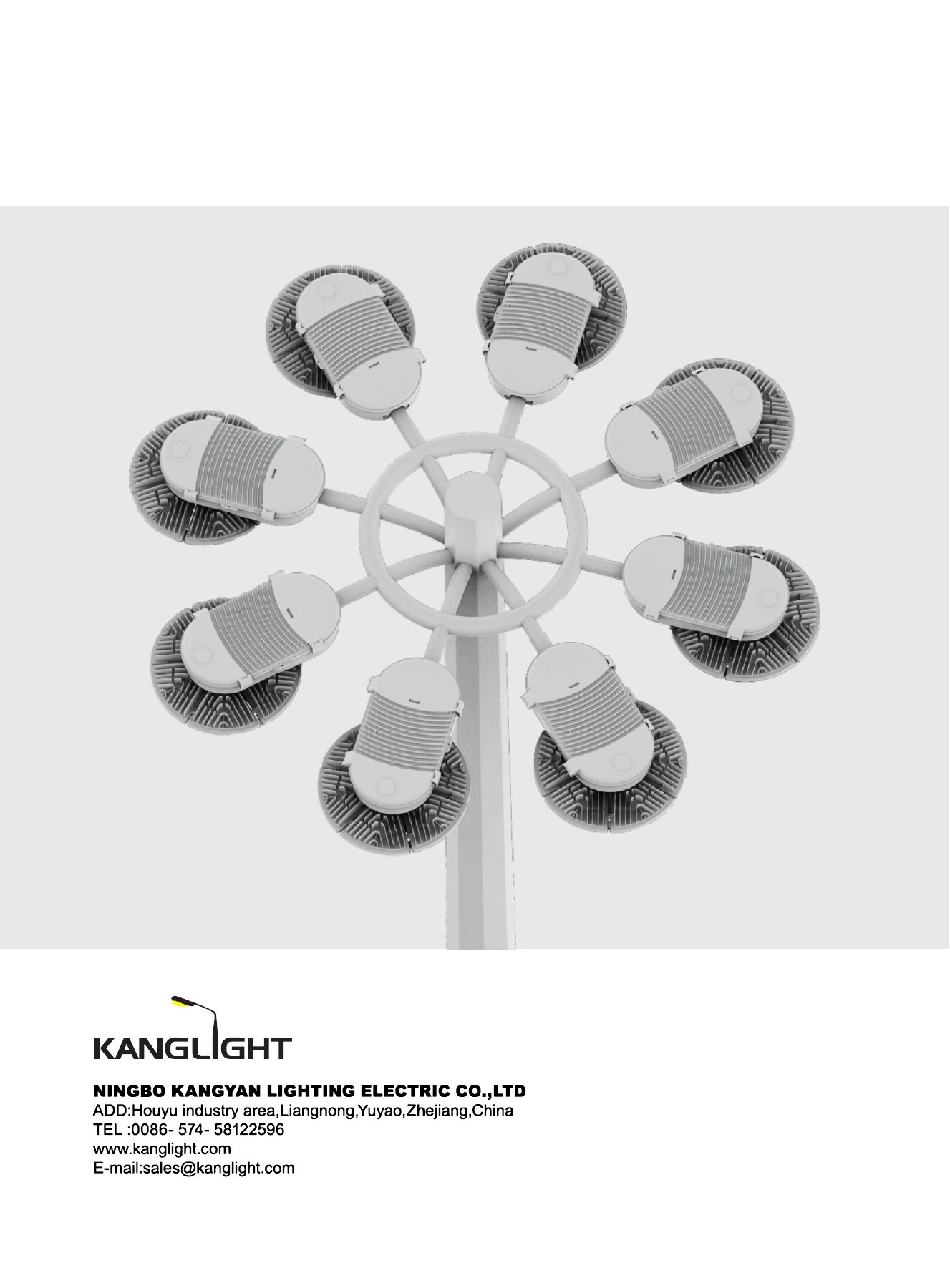

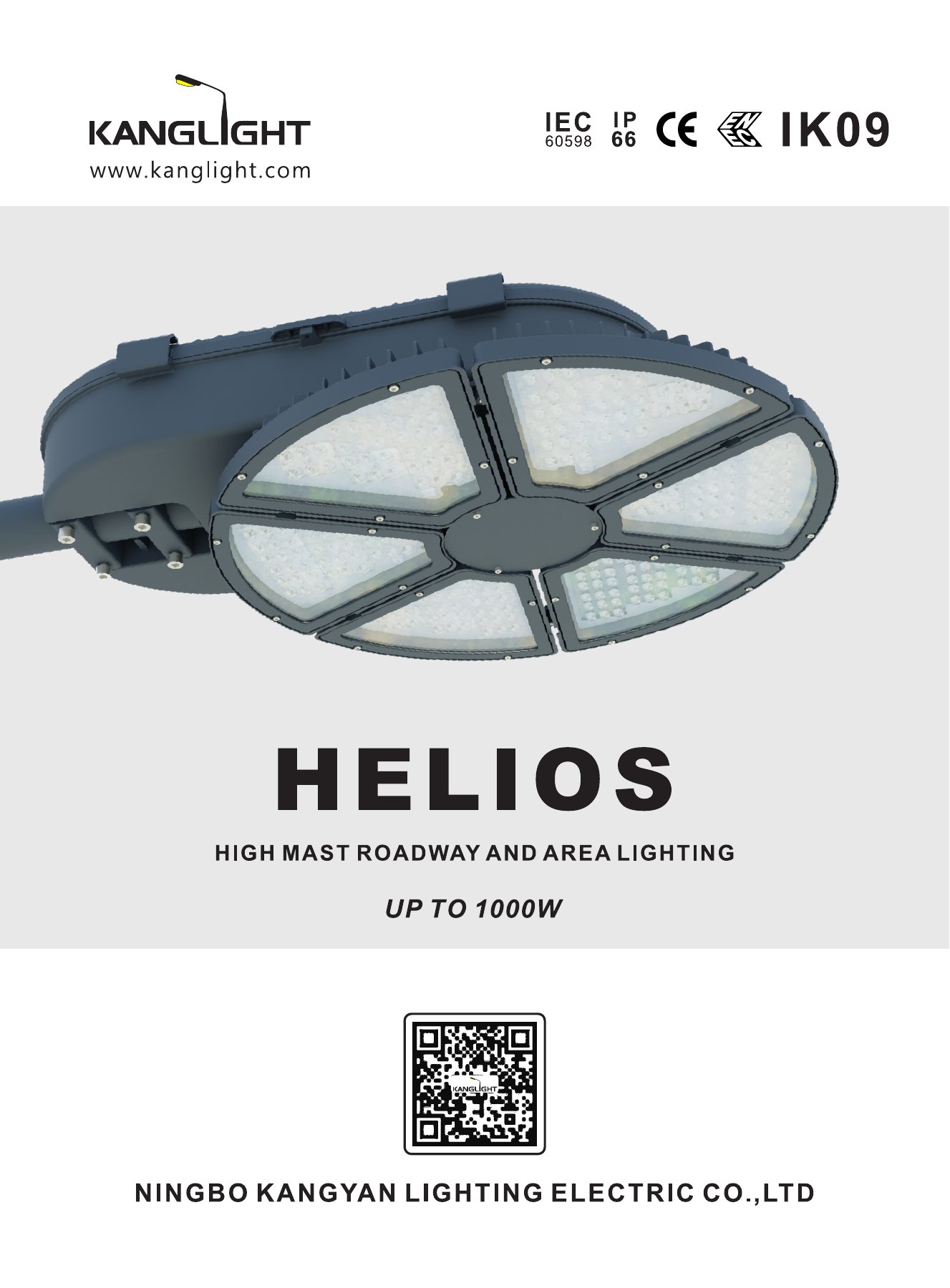

Catalogue back cover & cover · View 1 of 4

ProductDatasheet

HELIOS SERIESSeries range: Up to 1000 W

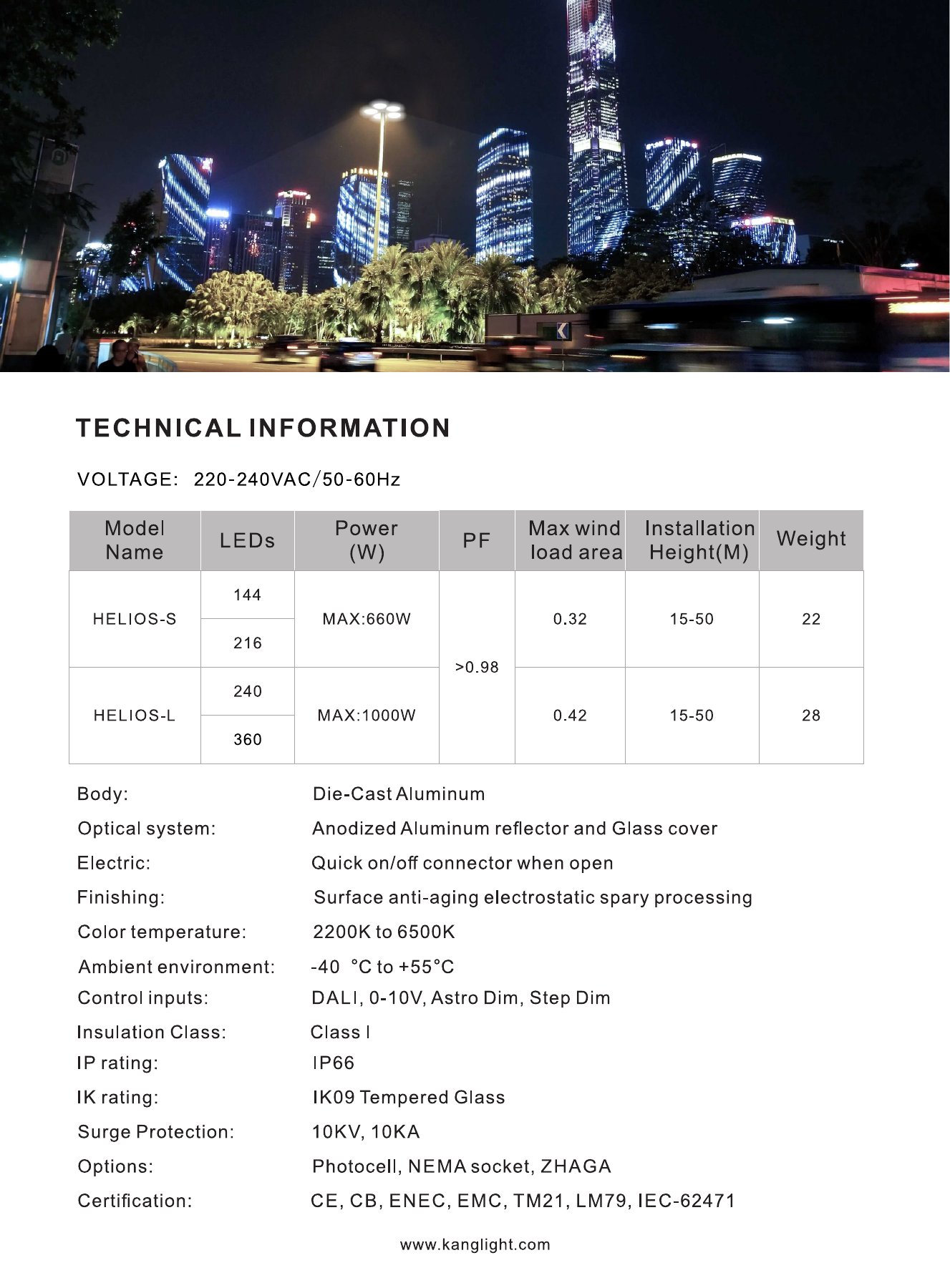

Model	Power (W)	LED Quantity (pcs) 3535/5050
HELIOS-S	Up to 660	144 / 216
HELIOS-L	Up to 1000	240 / 360

Options

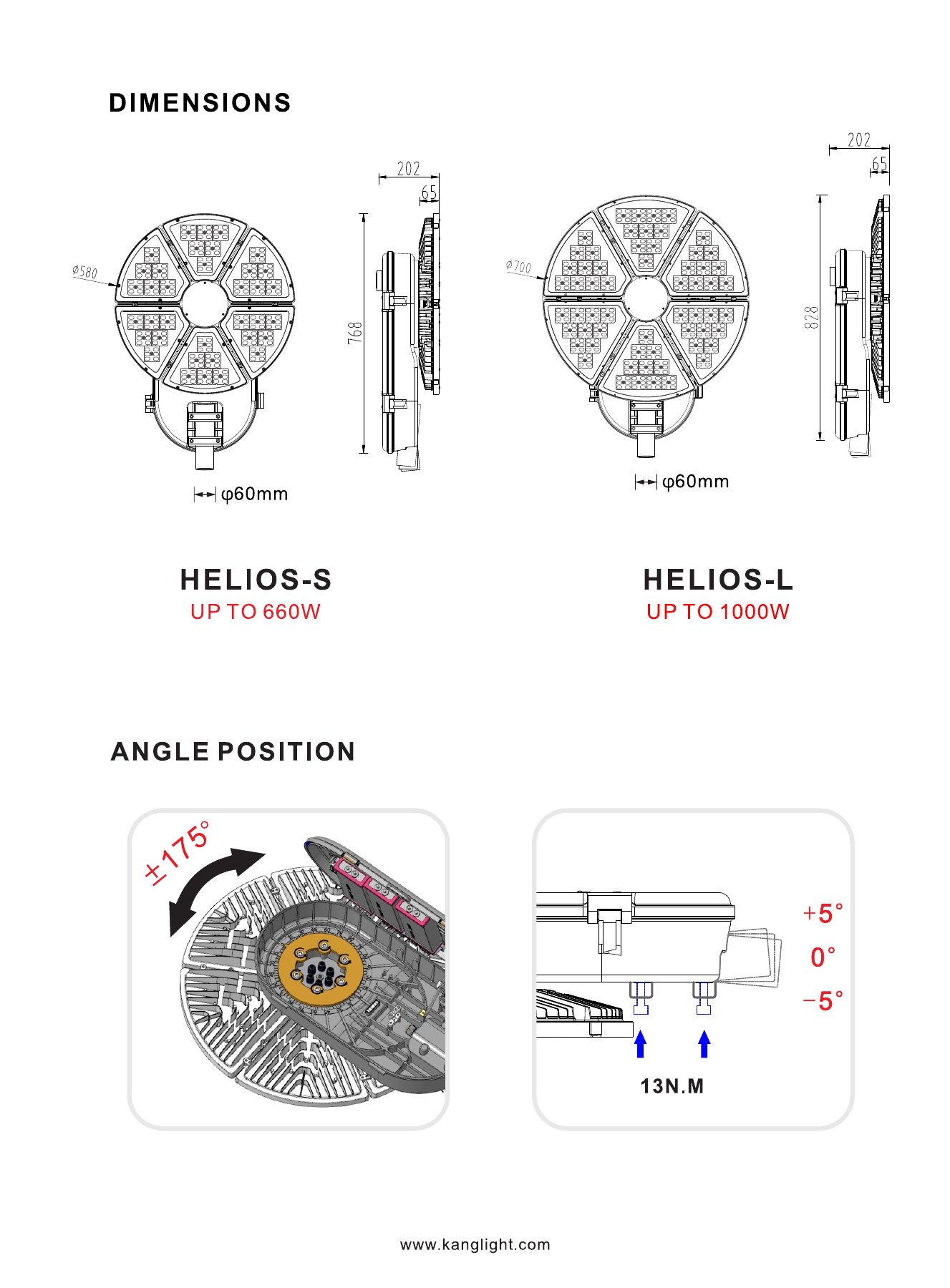

DALI, 0–10V, AstroDIM, StepDIM; photocell, NEMA socket and Zhaga. Ø60 mm side-entry mounting, −5° / +5° aiming adjustment and −175° / +175° optical-module rotation, subject to the selected configuration.

Reference: supplied HELIOS Catalogue V8, PDF pages 3–6. Power figures are maxima, not minimum-to-maximum ranges; final configuration and certification scope must be confirmed for the selected model.

Tell us about your project

PRODUCT DOCUMENTATION

Certifications

Technical Resources

Class I

ENEC · CB · CE / LVD · EMC

4 original documents

View certificates

Documents are separated by the stated electrical protection class. Scope depends on the exact models, components and configurations in each original; an ENEC+ or EMC document is not a blanket claim for every series variant.

PROJECT ANSWERS

What needs to be confirmed before production?

The model, power, optics, mounting, power supply, accessories, quantities, packaging and delivery requirements.
